Product Description

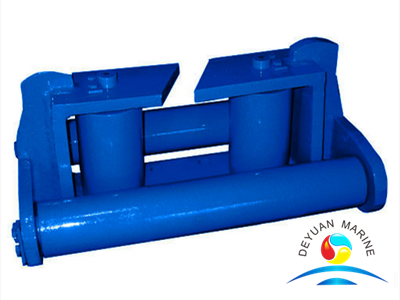

Casting Steel Engineering Ship's Mooring Roller Fairlead Type A CB*3015-83
Engineering ship's mooring fairlead was designed according to Chinese standard CB3015-83 and widely used for dredgers,crane ships,pilling boats and other engineering vessels.
There are two types of Casting Steel Engineering ship's fairleads for option,type A and type B.Its roller diameter range from 100MM to 300MM,suitable for wire rope with diameter of 19.5mm to 56mm.
Our CB*3015-83 Engineering ship's fairlead's body,vertical and horizontal roller is cast from high quality cast steel,with good workmanship,The Mooring Roller Fairlead surface is clean and smooth with any defects.
All our Casting Steel Roller Fairlead are approved by CCS and other third party quality certification. If you're interested in our products, Kindly feel free to contact us.
Engineering Ship's Mooring Roller Fairlead Detail:
Material: Cast Steel
Standard:Type A CB*3015-83
Model Type: Engineering Ship Mooring Roller Fairlead
Roller Diameters:100mm~300mm
Screw Diameter: 22mm to 39mm
Diameter of Applicable Steel Wire: 19.5mm to 56mm
Certificate: CCS, ABS, BV, LR, NK, RINA etc.
Type A CB*3015-83 Engineering Ship's Roller Fairlead Data Sheet:
Roller dia D | Horizontal roller dia d1 | Suitable steel wire dia | L | B | H | Screw hole dia d | |||||
A type | B type | b | h1 | h2 | I | ||||||
100 | 85 | 19.5 | 540 | 340 | 240 | 240 | 250 | 220 | 50 | 200 | 22 |
150 | 120 | 26 | 760 | 460 | 340 | 340 | 340 | 320 | 65 | 290 | 26 |
200 | 150 | 37.5 | 980 | 580 | 430 | 440 | 430 | 410 | 80 | 380 | 32 |
250 | 200 | 48.5 | 1220 | 740 | 520 | 550 | 540 | 500 | 110 | 480 | 39 |
300 | 250 | 56 | 1460 | 900 | 620 | 675 | 650 | 590 | 135 | 580 | 39 |
