Product Description

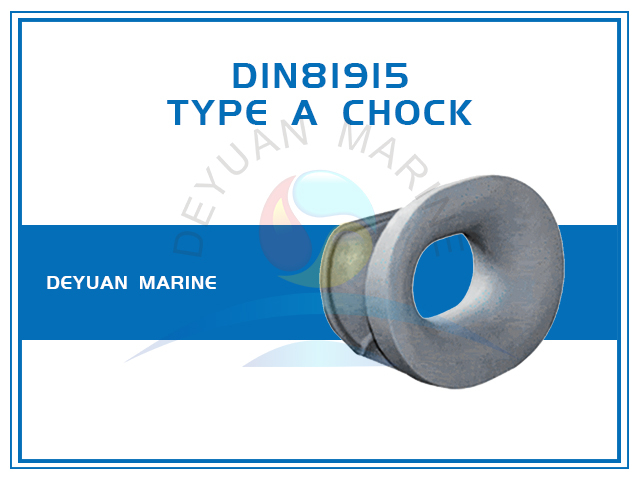

Bulwark Mounted Panama Chocks DIN81915 Chock Type A
Introduction of DIN81915 Chock Type A
DEYUAN MARINE supplies a comprehensive range of deck mounted or bulwark mounted Panama Chocks for temporary mooring. All materials used for our Panama Chocks are covered by Class Certificates.

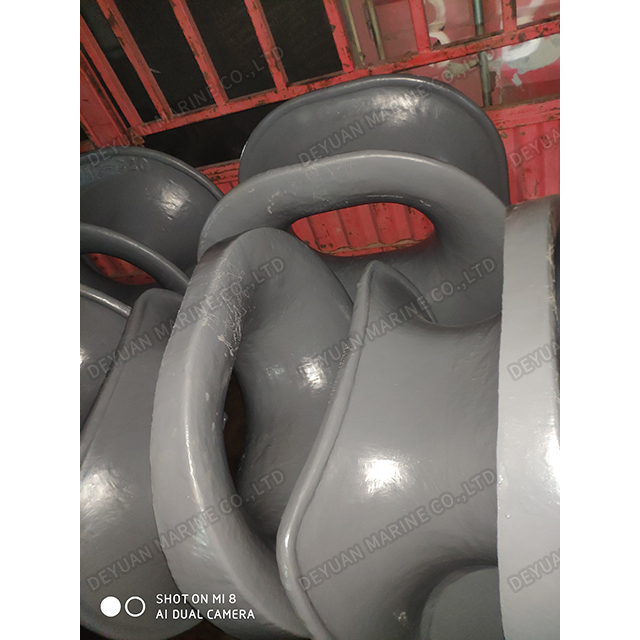

Type A DIN81915 Chock is a kind of bulwark mounted panama chock and made from carbon steel castings with good craftmanship.
As per Panama Rules, DIN81915 Chock Type C can be categorized as
Type A2-A8 Single Chock According to Panama Rules
Type A12-A32 Double Chock According to Panama Rules
Clients can choose the suitable chocks according to the working conditions, but if you have no idea on how to choose it, pls feel free to contact us for a catalog.
Per DIN81915 Chocks, we have totally four types for your options, that's
DIN81915 Chock, bulwark mounted,Type A, A2 to A32
DIN81915 Chock, deck mounted, Type B, B3, B5, B8
DIN81915 Chock, deck mounted, Type C, C2 to C32
DIN81915 Chock, deck mounted, Type D, D3, D5, D8
Panama Chocks DIN81915 Chock Type A
Model | SWL | Mass | Dimensions(mm) | |||||
(kn) | kgs | L | W | H | H1 | A | B | |
A2 | 20 | 26 | 360 | 200 | 315 | 70 | 160 | 115 |
A3 | 30 | 42 | 450 | 250 | 390 | 75 | 200 | 140 |
A5 | 50 | 74 | 550 | 300 | 480 | 80 | 250 | 180 |
A8 | 80 | 120 | 680 | 360 | 585 | 90 | 320 | 225 |
A12 | 125 | 185 | 840 | 440 | 710 | 110 | 400 | 270 |
A20 | 200 | 285 | 1020 | 520 | 840 | 130 | 500 | 320 |
A32 | 320 | 795 | 1300 | 700 | 1100 | 150 | 600 | 400 |
