Bow Chocks Single Point Mooring Pipes A Type JIS F 2030-1978

Type:Single Point Mooring Pipes
Brand:Deyuan Marine
Material:Cast steel, carbon iron, stainless steel
Standard:JIS F 2030-1978
Surface:Primed, galvanised or grey painted finish.
Service life:12-15 years
Certificate:BV, GL, ABS, DNV, CCS, etc.
Delivery time:Upon your order quantity
  • Name: Single Point Mooring Pipes
  • Type: A Type
  • Standard: JIS F 2030-1978
  • Standard finishing : Paint primed or galvanised
  • Certificate: CCS,ABS,LR,BV,DNV,ABS,RINA etc
  • MOQ: negotiate

Product Description

Bow Chocks  Single Point Mooring Pipes A Type JIS F 2030-1978

Mooring bow chock is also called mooring bow pipe because it works as a pipe through which mooring rope can pass.We can categorize chocks as per its shape or installation way or manufacturing Standards.

If according to shape,we have open chock,closed chock,roller chock,if as per installation way,we have deck mounted chocks and bulwark mounted chocks.

Single Point Mooring Pipes was made of cast iron or cast steel or stainless steel,it is commonly use to guide ropes for ships/vessels ,the final finished paint use Grey Epoxy Primer or Black Bitumen Paint,also can do comply with your requirement for the thickness , operating effectively throughout the world . We designs and manufactures  JIS F 2030-1978 mooring Pipes in a wide variety of sizes and styles.

Whatever your requirements,We endeavour to offer the most economic mooring single chock or other deck fittings to ensure you meet the standards for safe and quick mooring, unmooring and line-tending operations with reduced crews.


All our Single Point Bow Chocks  are approved by various classification societies like ABS,DNV,BV,LR,NK,CCS ,RINA etc , We can design and produce the anchor according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Warmly welcome you to send us your inquiry if you in need of any marine deck or bulwark chocks.

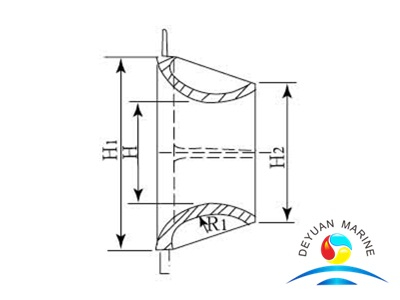

Single Point Mooring Pipes A Type JIS F 2030-1978 Datasheet:

Nominal DIA
L L1 H H1 B C Weight
400 400 480 300 680 350 65 210
  500   500   940   400   840   400   70      340
    600    600    1100    450    950    450    75      490
  700   700   1260   500   1060   500   80      600
    800    800    1420    600    1220    550    85      880
