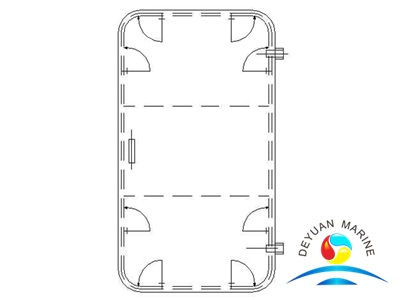

BY Type Marine Single-leaf Steel Weathertight Door

Material: Steel
Leaf type: Single leaf
Clear size: Customized
Color: White or customized
Feature: Weather tight
Waterproof test: Under nozzle diameter 12.5mm,water pressure 0.25Mpa
Certificate: RINA, RS, NK, LR, KR, CCS, GL, DNV, ABS Class

Product Description

BY Type Marine Single-leaf Steel Weathertight Door
Level B steel door test request: It should passed the hose test which nozzle diameter 12.5mm,water pressure 0.25Mpa

Specification
No.
Clear Size  Cut-out Size Door Leaf Size Door Leaf Thickness Dog Clip
Quantity
Stiffener
Specifications
Weight(kg)
Wxh W2Xh2 BF BY W1Xh1 t t=6 t=8
1050 500X1000 600X1100 R80 R150 555X1055 6  - 6 50X5 82.5 -
1260 600X1200 700X1300 R80 R150 655X1255 6  - 6 50X5 100.7 -
1460 600X1400 700X1500 R80 R150 655X1455 6 8 6 65X6 112.2 135.4
1475 750X1400 850X1500 R80 R150 805X1455 6 8 6 65X9 128.4 155.7
1490 900X1400 1000X1500 R80 R150 955X1455 - 8 8 75X9 - 181.5
1660 600X1600 700X1700 R80 R150 655X1655 - 8 6 65X6 - 148.3
1675 750X1600 850X1700 R80 R150 805X1655 - 8 6 65X9 - 170.4
1690 900X1600 1000X1700 R80 R150 955X1655 - 8 8 75X9 - 198.1


Marked sample:Level B single-leaf  square-corner steel weathertight door(ORB) which clear size 1600X600,
door leaf thickness 8,stiffener 65X6.
Marked as: SINGLE-LEAF STEEL WEATHERTIGHT DOOR   BF1660-8-65X6-5.1   GB/T 3477-1996
