Product Description
BV Approval Marine Steel Accommodation Ladder For Ship

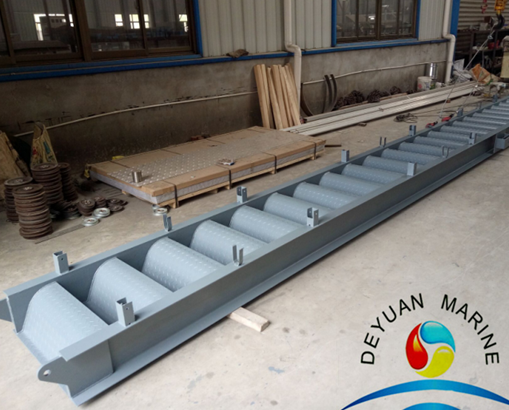

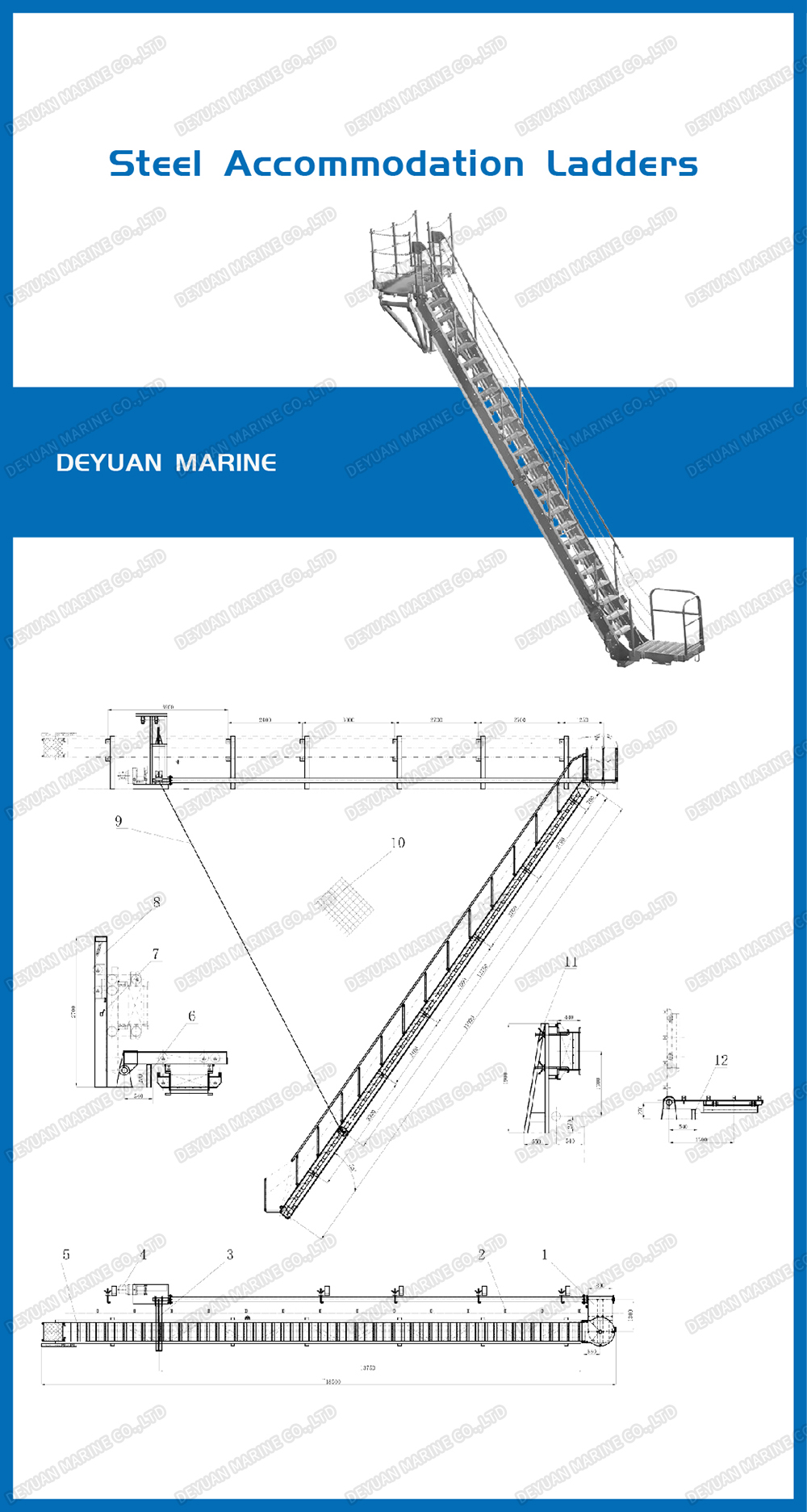

Introduction of Steel Accommodation Ladders
Accommodation Ladders are made of the finest steel, it’s a portable ladder hinged to a platform attached to the side of a ship and which can be positioned to provide access between ship and shore. DEYUAN MARINE’S accommodation ladders and gangways work in a variety of settings, with the most common being commercial ships, small passenger vessels, docks, navy piers, and refineries.
Beam type accommodation ladders or truss type accommodation ladders of any length designed for option. All DEYUAN MARINE’S Accommodation Ladders for ships are designed and tested to meet industry standard specifications. Ladders can fit with rope, chain or pipe Handrails, with fixed or curved treads, upper, lower platform, davit system can be delivered together as a complete package.
DEYUAN MARINE’S standard accommodation ladders are designed for a 735N loading strength on every steps, customized lengths and widths available to suit your application.
Apart from steel accommodation ladders, seawater-resistant aluminium accommodation ladders are in scope of supply too, for more specific details, please donot hesitate to contact us for a brochure.
| Steps | L1 | Max Height H | L | B | D | t | h | Rolling-over center distance l1 | Distance between rolling-over center and ship side l2 | Weight kg |
| 12 | 3600 | 3519 | 5130 | 50 | N350 | 5 | 220 | 850 900 950 1000 | 300 350 400 450 | 390 |
| 14 | 4200 | 4010 | 5730 | 50 | N350 | 5 | 220 | 440 | ||
| 16 | 4800 | 4502 | 6330 | 50 | N350 | 5 | 220 | 500 | ||
| 18 | 5400 | 4994 | 6930 | 50 | N350 | 5 | 220 | 550 | ||
| 20 | 6000 | 5485 | 7530 | 50 | N350 | 5 | 220 | 600 | ||
| 22 | 6600 | 5977 | 8130 | 50 | N350 | 5 | 220 | 650 | ||
| 24 | 7200 | 6468 | 8730 | 50 | N350 | 5 | 220 | 700 | ||
| 26 | 7800 | 6960 | 9330 | 75 | N450 | 6 | 300 | 900 950 1000 1050 1100 | 350 400 450 | 795 |
| 28 | 8400 | 7451 | 9930 | 75 | N450 | 6 | 300 | 850 | ||
| 30 | 9000 | 7943 | 10530 | 75 | N450 | 6 | 300 | 905 | ||
| 32 | 9600 | 8434 | 11130 | 75 | N450 | 6 | 300 | 960 | ||
| 34 | 10200 | 8926 | 11730 | 80 | N500 | 6 | 350 | 1000 1050 1100 1150 | 400 450 500 550 | 1150 |
| 36 | 10800 | 9417 | 12330 | 80 | N500 | 6 | 350 | 1210 | ||
| 38 | 11400 | 9909 | 12930 | 80 | N500 | 6 | 350 | 1270 | ||
| 40 | 12000 | 10400 | 13530 | 80 | N500 | 8 | 400 | 1050 1100 1150 1200 1250 | 450 500 550 600 | 1440 |
| 42 | 12600 | 10892 | 14130 | 80 | N550 | 8 | 400 | 1510 | ||
| 44 | 13200 | 11383 | 14730 | 80 | N550 | 8 | 400 | 1580 | ||
| 46 | 13800 | 11875 | 15330 | 80 | N550 | 8 | 400 | 1650 | ||
| 48 | 14400 | 12366 | 15930 | 80 | N550 | 8 | 400 | 1720 |
