15M Marine Aluminium Accommodation Ladder With CCS Approval For Ship

Origin: Made in China
Application: Ship, boat
Type: Accommodation ladder
Material: Aluminium
Length: 15M
Packing: Export package
Delivery time: 10-30days
Warranty: 1Year
Brand: Deyuan Marine
Availability:

Product Description

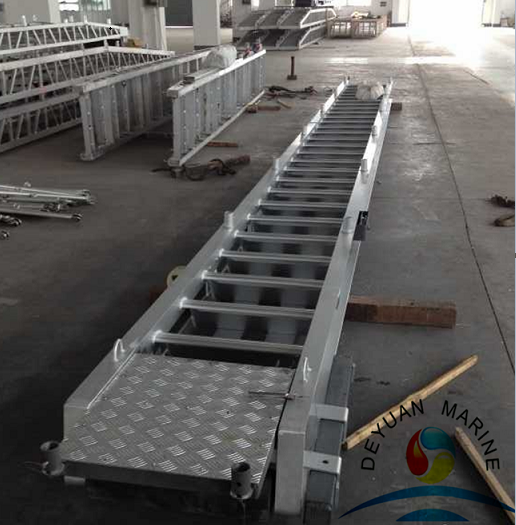

Aluminium Accommodation Ladder For Ship

product descriptionThe accommodation ladder is a one point access to ship's deck for shore personal, port lashing or cargo crew and seafarers. Aluminium accommodation ladder is used in port, at sea, or in anchorage for getting pilot or crew onboard ship or vice-versa (The same purpose can be solved by the gangway of the ship as well).


Most of our accommodation ladder can provide with marine certificate such as CCS, BV, ABS, NK, DNV, GL etc.

DEYUAN MARINE offer a full range size of a complete set Acc. Ladder, including upper platform, lower platform, winch and other relative accessories.

Upper platforms are mostly turnable, the lower platform hangs on a bail and can be lifted as required.

And to prevent damage to boats going under the ladder as the water level rises and falls, a boat fender is fitted to the end of the ladder, on both sides of the ladder, we fit with handrails for safety as well.

 If you need more accommodation ladder information, kindly contact with us!


technical parameters

Steps L1 Max Height
H
L h Weight (kg) Step Distance
(mm)
Angle of
Inclination
12 3600 3600 5290 250 320 300(350) 55°(60°)
14 4200 4100 5890 250 330
16 4800 4600 6490 250 340
18 5400 5200 7090 250 530
20 6000 5800 7690 250 560
22 6600 6400 8290 250 580
24 7200 6900 8890 250 600
28 8400 7900 10090 250 780
32 9600 8900 11290 250 850
36 10800 9800 12490 320 890
40 12000 10800 13690 320 970
44 13200 11800 14890 350 1180
48 14400 12800 16090 350 1260
52 15600 13800 17290 420 1370

Truss style Aluminum Modular Acc. Ladders
