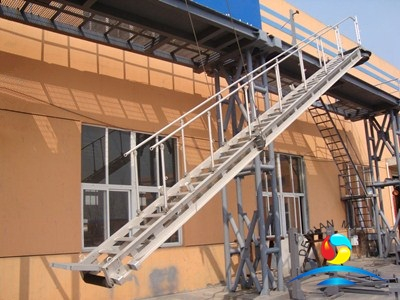

22800mm Aluminium Telescopic Accommodation Ladder With ABS Approval For Ship
The accommodation ladder is a one point access to ship’s deck for shore personal, port lashing or cargo crew and seafarers. Just like any other deck equipment, the accommodation ladder is used in port, at sea, or in anchorage for getting pilot or crew onboard ship or vice-versa (The same purpose can be solved by the gangway of the ship as well).
Telescopic accommodation ladder is mainly consist of upper ladder, lower ladder, steps, ladder fram, handrail, ladder lifting chain, upper platform, lower platform, turning device, transmission device, close bracket etc. we can supply this kind of accommodation ladder in aluminium material and steel material, upper flatform is for option. Different length can be design as per customer required.
Most of our accommodation ladder can provide with marine certificate such as CCS, BV, ABS, NK, DNV, GL etc. More telescopic accommodation ladder information, kindly contact with us!
| No.of steps | Size L | Size L1 | Size L2 | Max. Height H |
| mm | mm | mm | mm | |
| 40 | 12000 | 9500 | 4500 | 10770 |
| 44 | 13200 | 10100 | 5100 | 11750 |
| 48 | 14400 | 11000 | 5700 | 12730 |
| 52 | 15600 | 11600 | 6600 | 13710 |
| 56 | 16800 | 12200 | 7200 | 14690 |
| 60 | 18000 | 13100 | 7800 | 16650 |
| 64 | 19200 | 13700 | 8400 | 17630 |
| 68 | 20400 | 14300 | 9000 | 18610 |
| 72 | 21600 | 14900 | 9900 | 19590 |
| 76 | 22800 | 15500 | 10500 | 20570 |
