ISO5488 Aluminium Accommodation Ladders Ship Side Acc. Ladders

Brand: DEYUAN MARINE
Standard: ISO5488
Ladder Material: Aluminum Alloy
Type: Light duty or heavy duty for option
Certificate: CCS,DNVGL, LR, ABS, BV, NK,KR,RINA etc
Lead time: In stock or 5-7days
Payment: TT or LC
Availability:

Product Description

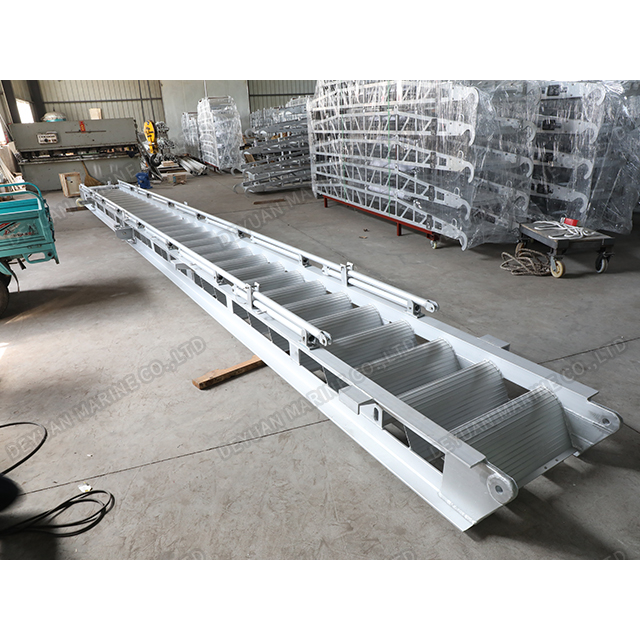

 Aluminium Accommodation Ladders

111

Introduction of Aluminium Accommodation Ladders

An accommodation ladder is a portable flight of steps down a ship's side and mainly made from corrosion resistant aluminium alloys material.

ISO5488 Acc. Ladders is specially designed for merchant ships (excluding passenger ships) to enable crew and pilots to embark and disembark safely.

When aluminium accommodation ladder used specifically in combination with pilot ladder, we usually call it as Pilot Accommodation Ladders.

DEYUAN MARINE offer a full range size of a complete set Acc. Ladder, including upper platform, lower platform, winch and other relative accessories.

Upper platforms are mostly turnable, the lower platform hangs on a bail and can be lifted as required.

And to prevent damage to boats going under the ladder as the water level rises and falls, a boat fender is fitted to the end of the ladder, on both sides of the ladder, we fit with handrails for safety as well.

All DEYUAN MARINE’S Acc. Accommodation Ladders can be certified by any AICS members like CCS, ABS, DNV, BV, LR, NK etc.

And if you are interested in other ship ladders used on board, please click following link to view more specific details


Steel Accommodation Ladder

Telescopic Accommodation Ladders

Aluminium Accommodation Ladder For Diver

Aluminium Alloy Wharf Ladder

Aluminium Light Duty Gangways

Aluminium Heavy Duty Gangways

Bulwark Ladders

Ship's Steel Inclined Ladders

Engine Room Ladder

Pilot Rope Ladder

Embarkation rope ladde

222

Aluminium Accommodation Ladders Parameter

Steps L1 Max Height
H
L h Weight (kg) Step Distance
(mm)
Angle of
Inclination
12 3600 3600 5290 250 320 300(350) 55°(60°)
14 4200 4100 5890 250 330
16 4800 4600 6490 250 340
18 5400 5200 7090 250 530
20 6000 5800 7690 250 560
22 6600 6400 8290 250 580
24 7200 6900 8890 250 600
28 8400 7900 10090 250 780
32 9600 8900 11290 250 850
36 10800 9800 12490 320 890
40 12000 10800 13690 320 970
44 13200 11800 14890 350 1180
48 14400 12800 16090 350 1260
52 15600 13800 17290 420 1370

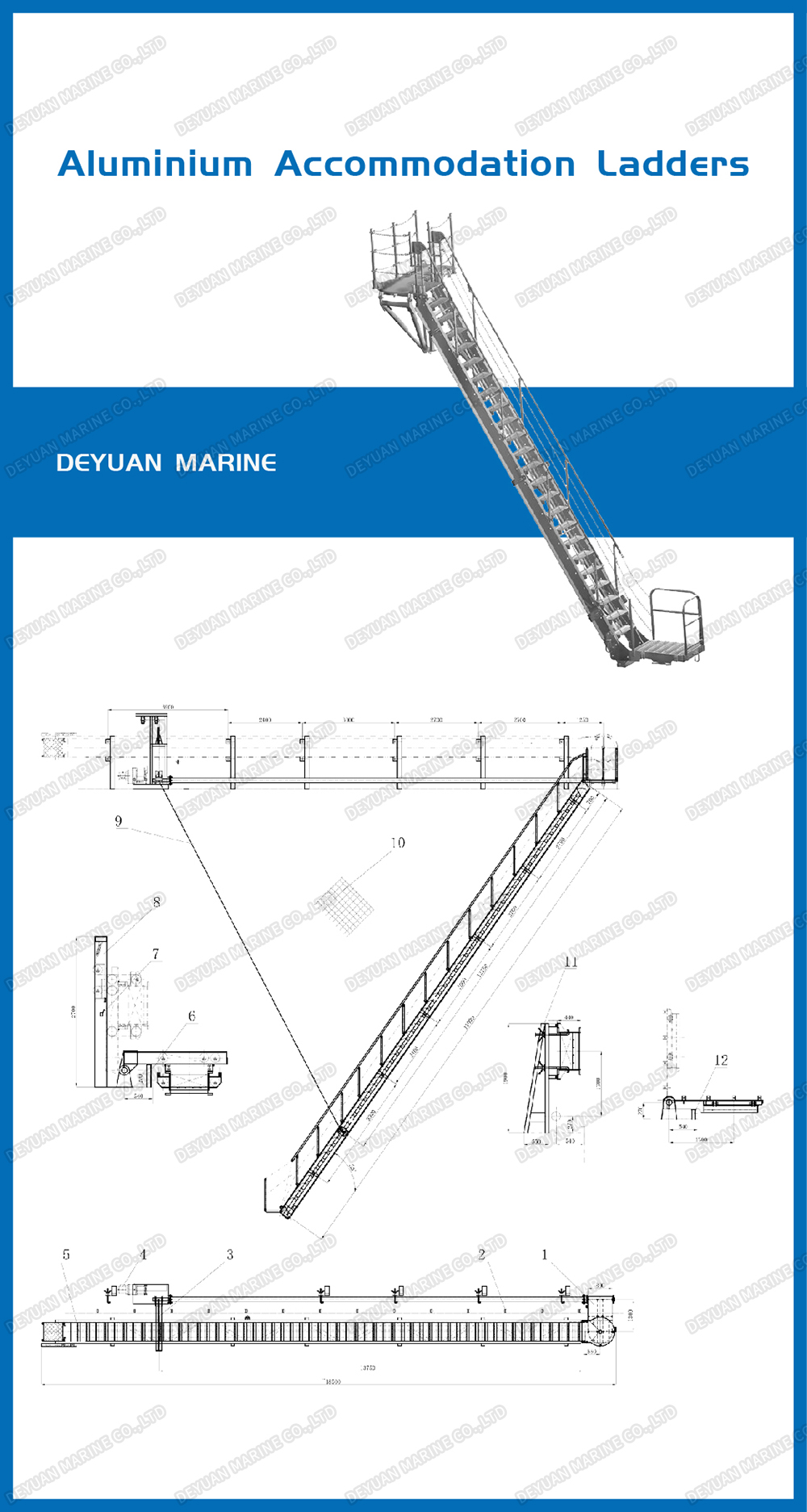

Accommodation Ladders for ships
