Ship Side ACC. Ladders Aluminum Modular Accommodation Ladder

Brand: DEYUAN MARINE
Standard: ISO5488
Ladder Material: Aluminum Alloy
Type: Beam type and truss type for option
Certificate: CCS,DNVGL, LR, ABS, BV, NK,KR,RINA etc
Lead time: In stock or 5-7days
Payment: TT or LC
Availability:

Product Description

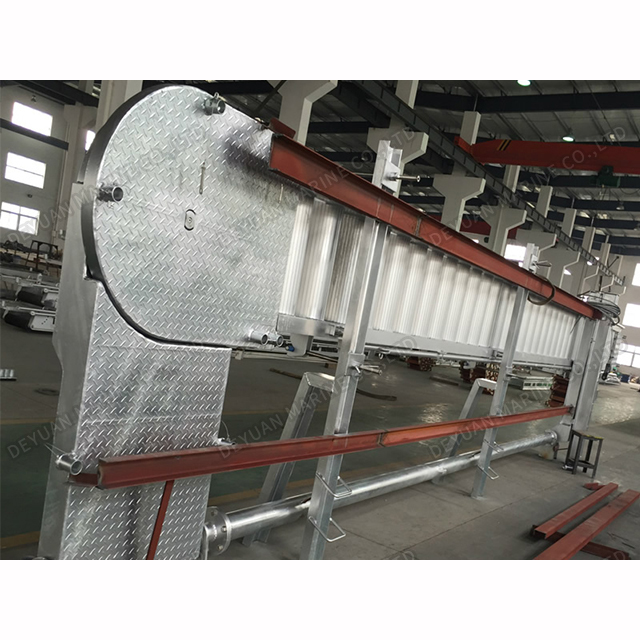

                     Ship Side ACC. Ladders Aluminum Modular Accommodation Ladder


Ship Side Accommodation Ladder product description

Introduction of Modular Accommodation Ladder

DEUAN MARINE’S aluminum modular accommodation ladder for embarkation are designed to meet the required IMO standard (ISO 5488:2015, MSC.1/ Circ. 1331 and EN 14206) and comply with all quality and safety requirements, and can be delivered with any IACS class certificate upon customer’s request.

This ship side modular accommodation ladders are made of seawater resistant aluminium alloy of higher tensile strength, length can be tailor-made to suit customer’s individual requirements.

Ensuring the crew can embark and disembark safely and quickly, avoiding accidents, our  modular accommodation gangway ladders use safety elements, such as protective netting for falls, anti-slip surface of ladder steps, removable or folding handrails using ropes or pipes or chains.

DEYUAN MARINE has delivered a large number of strong, versatile and

low-maintenance accommodation ladders and gangways for embarkation to oversea market . Both beam type and truss style Acc. Ladders available,please donot hesitate to contact us if are in need of a Modular Acc. Ladders or other following ship's ladders.


Steel Accommodation Ladder

Telescopic Accommodation Ladders

Aluminium Accommodation Ladder For Diver

Aluminium Alloy Wharf Ladder

Aluminium Light Duty Gangways

Aluminium Heavy Duty Gangways

Bulwark Ladders

Ship's Steel Inclined Ladders

Engine Room Ladder

Pilot Rope Ladder

Embarkation rope ladder


Aluminum Modular Accommodation Ladder technical parameters


Aluminum Modular Accommodation Ladders Parameter

Steps L1 Max Height
H
L h Weight (kg) Step Distance
(mm)
Angle of
Inclination
12 3600 3600 5290 250 320 300(350) 55°(60°)
14 4200 4100 5890 250 330
16 4800 4600 6490 250 340
18 5400 5200 7090 250 530
20 6000 5800 7690 250 560
22 6600 6400 8290 250 580
24 7200 6900 8890 250 600
28 8400 7900 10090 250 780
32 9600 8900 11290 250 850
36 10800 9800 12490 320 890
40 12000 10800 13690 320 970
44 13200 11800 14890 350 1180
48 14400 12800 16090 350 1260
52 15600 13800 17290 420 1370

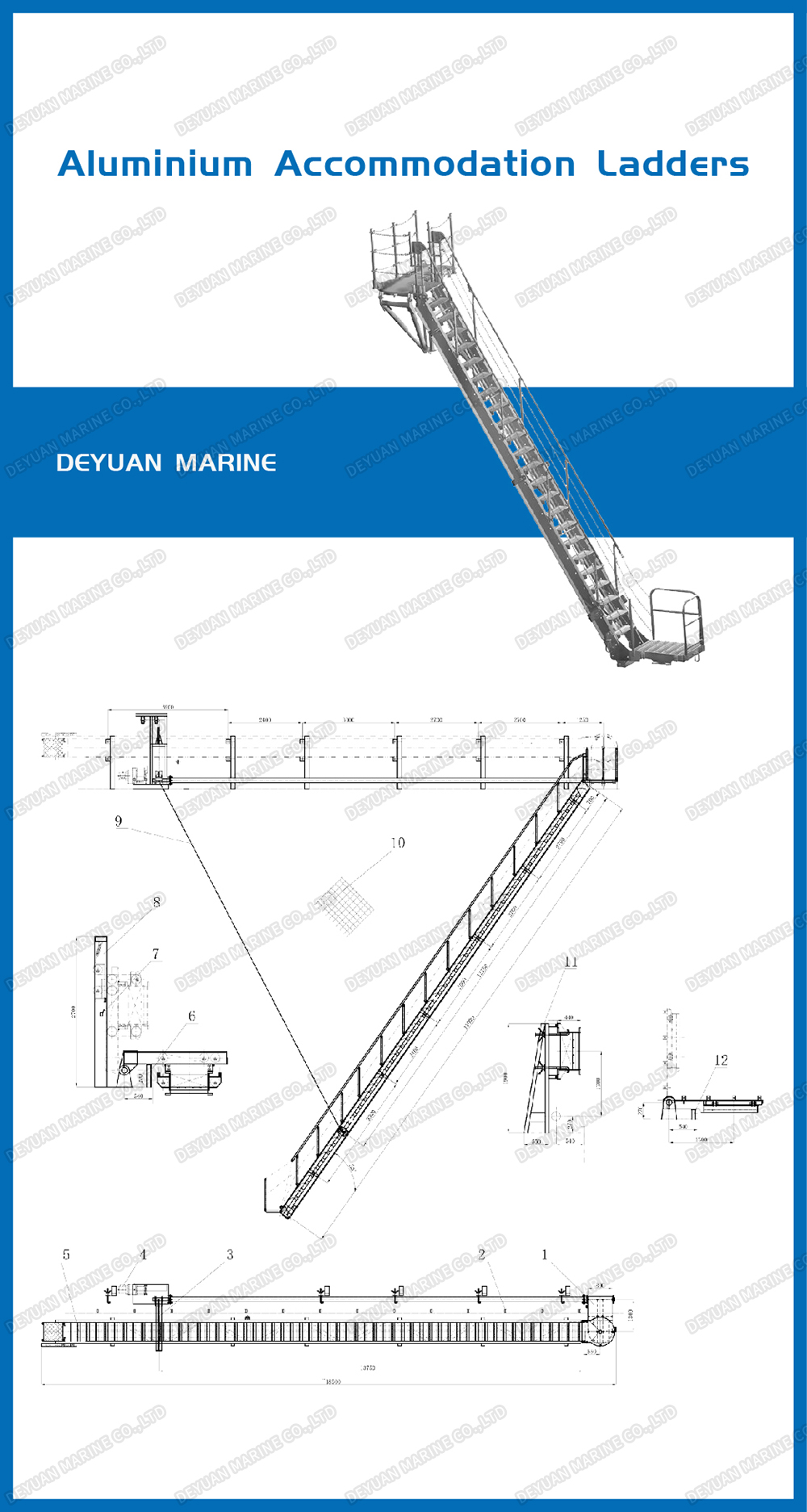

Truss style Aluminum Modular Acc. Ladders
