Telescopic Accommodation Ladder for Ships

Brand: DEYUAN MARINE
Standard: ISO5488
Ladder Material:Steel
Steps: Fixed curved steps
Type: Telescopic Acc. ladder
Certificate: CCS,DNVGL, LR, ABS, BV, NK,KR,RINA etc
Lead time: In stock or 5-7days
Payment: TT or LC
Availability:

Product Description

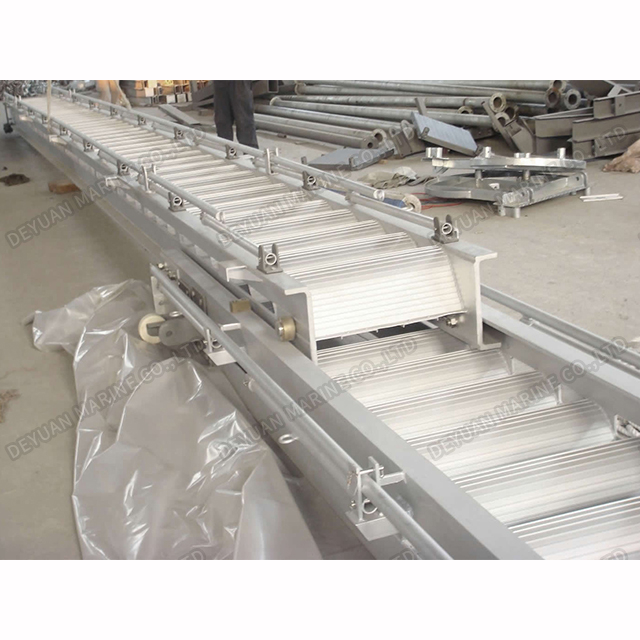

                         Telescopic accommodation ladder for ships

Aluminum Telescopic Accommodation Ladder product description

Introduction of Telescopic accommodation ladder for ships

Accommodation Ladders and Gangways are typically designed and used onboard for means of embarkation and disembarkation, providing secure footing for personnel in wet and unstable conditions. The ladders can be designed as part of a ladder system or as a standalone ladder.

Telescopic accommodation ladder is used for covering a long distance between the vessel and port quay.

We specialize in custom ship telescopic marine ladders which used on container ships, barges, docks, and offshore platforms. Telescopic accommodation ladders are custom-designed to accommodate deck height, angle from vertical, rung height, ladder type, and handrail requirements.


Features and Benefits of Telescopic accommodation ladder

*Made from corrosion resistant aluminum alloy

*Manufactured according to ISO5488 standard, telescopic designed

*Fixed curved steps with extruded treads provide a safe working surface

*Features with light weight and high intensity

*IACS class certificate for option upon request

*735N loading strength on every steps

*Bespoke designed available


Other ship ladders Available

Steel Accommodation Ladder

Aluminium Accommodation Ladders

Aluminium Accommodation Ladder For Diver

Aluminium Alloy Wharf Ladder

Aluminium Light Duty Gangways

Aluminium Heavy Duty Gangways

Bulwark Ladders

Ship's Steel Inclined Ladders

Engine Room Ladder

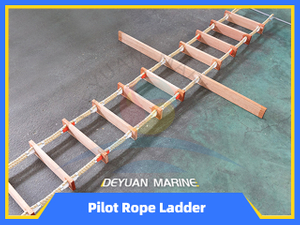

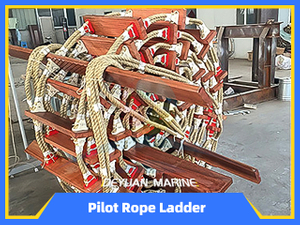

Pilot Rope Ladder

Embarkation rope ladder

Telescopic modular Accommodation Ladder technical parameters

Telescopic Accommodation Ladders Parameter

Steps
(n)
L L1 L2 L3 L4 L5 H H1 H2 Ladder Frame Weight (kg)
8 2400 1480 1480 560 2280 2130 445 320 210 L100X60X8 215
16 4800 2680 2680 560 3480 3330 445 320 210 295
24 7200 4000 4200 1000 5100 4900 445 320 210 390
32 9600 5300 5800 1500 6900 6350 495 350 260 L100X80X8 545
40 12000 6500 7000 1500 8100 7550 495 350 260 625
44 13200 7100 7600 1500 8700 8150 495 350 260 1100X80X10/15 735
48 14400 7700 8200 1500 9300 8750 495 350 260 825
52 15600 8500 9100 2000 10100 9550 495 350 260 895
56 16800 9100 9700 2000 10700 10150 495 350 260 975
60 18000 9700 10300 2000 11300 10750 550 400 320 L140X80X10/18 1135
64 19200 10300 10900 2000 11900 11350 550 400 320 1220
68 20400 10900 11500 2000 12500 11950 550 400 320 1305
72 21600 11500 12100 2000 13100 12550 600 400 350 1400
76 22800 12100 12700 2000 13700 13150 600 400 350 1490
80 24000 13000 13500 2500 14700 14150 600 400 350 1695
88 26400 14200 14700 2500 15900 15350 650 400 400 L140X80X 10/25 1850
96 28800 15400 15900 2500 17100 16550 650 400 400 1985

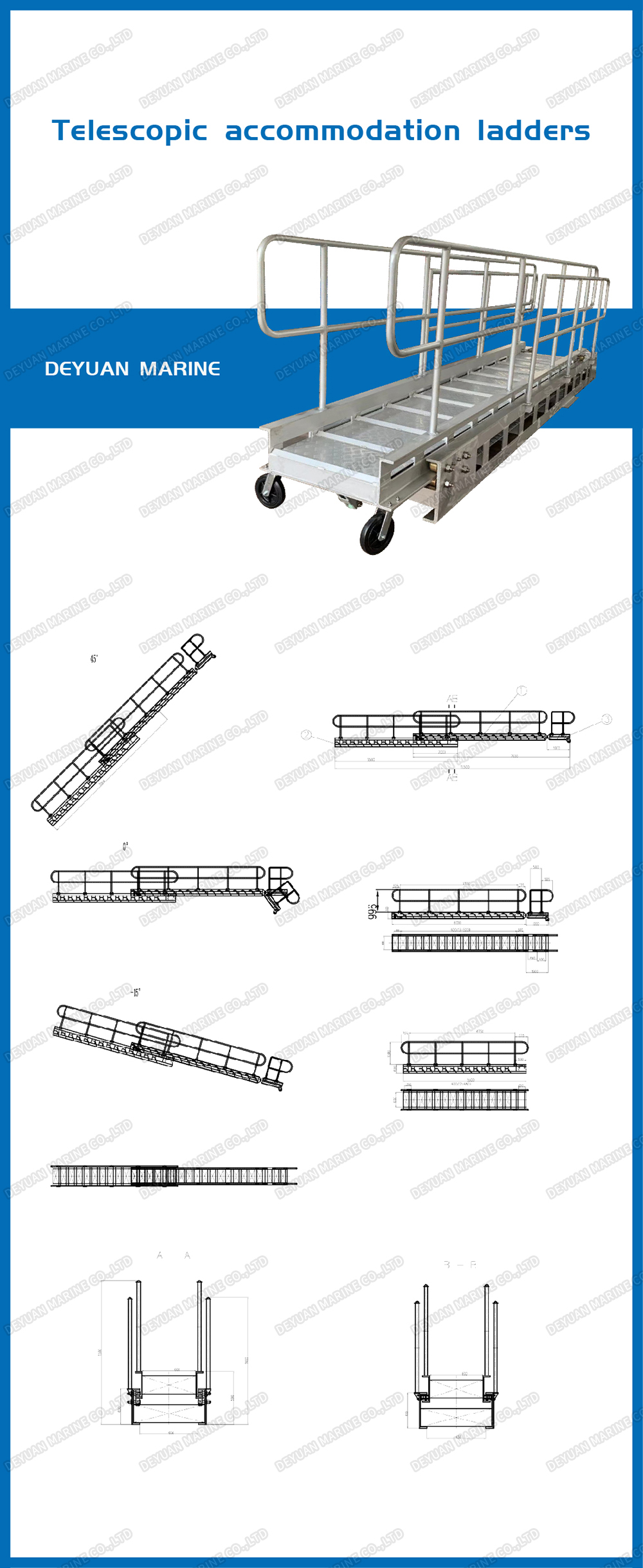

Heavy duty Telescopic Accommodation Ladder
