Marine Truss type Aluminum Accommodation Ladders for boarding

Brand: DEYUAN MARINE
Standard: ISO5488
Ladder Material: Aluminum Alloy
Type: Beam type and truss type for option
Certificate: CCS,DNVGL, LR, ABS, BV, NK,KR,RINA etc
Lead time: In stock or 5-7days
Payment: TT or LC
Availability:

Product Description

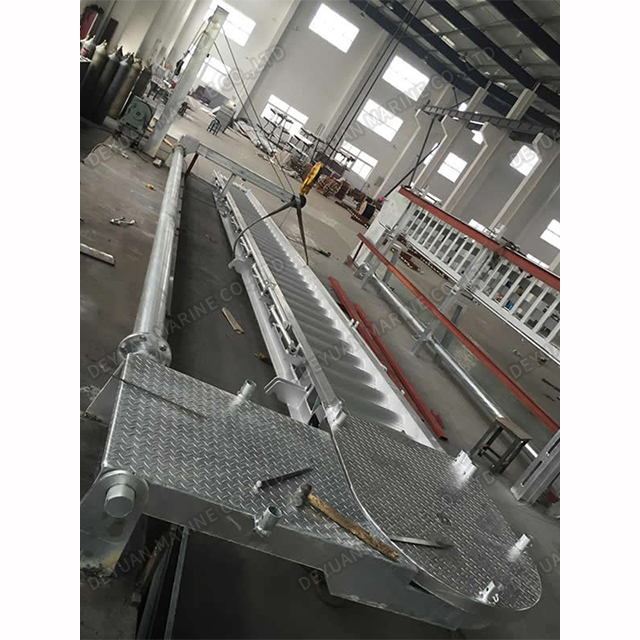

Marine Truss type Aluminum Accommodation Ladders for boarding

Aluminum accommodation ladders for ships product description

Introduction of Aluminum Accommodation Ladders

Accommodation ladder is one of the access system component used with many different types of boats and ships.

This type of nautical ladder can be hung over the side of a boat or ship with relative ease, making it possible for passengers to climb into or out of the vessel with relative ease. The dimensions of the accommodation ladder vary, depending on the size of the boat or ship.

Lightweight seawater resistant aluminium alloy of higher tensile strength accommodation ladder is the most popular Acc. Ladders used on board. Retractable accommodation ladder available, making it easy to fold them for easy storage, light duty and heavy duty is the common style for our Acc. Ladders, both are designed to meet the required IMO standard (ISO 5488:2015, MSC.1/ Circ. 1331 and EN 14206) and comply with all quality and safety requirements.

DEYUAN MARINE delivered a full line of boarding ladders,like aluminum accommodation Ladder, telescopic accommodation ladder, gangways, wharf ladders, bulwark ladders, inclined ladders, vertical ladders, engine room ladders, pilot rope ladder, embarkation ladder, rescue Ladder, steel ladders, dock ladders, activities stepping ladder & stairs, miscellaneous Ladders etc.

If you are looking for any ladders for your boats, please donot hesitate to contact us for a ladder brochure.

Marine Aluminum accommodation ladders technical parameters

Truss type Aluminum Accommodation Ladders Parameter


Steps L1 Max Height
H
L h Weight (kg) Step Distance
(mm)
Angle of
Inclination
12 3600 3600 5290 250 320 300(350) 55°(60°)
14 4200 4100 5890 250 330
16 4800 4600 6490 250 340
18 5400 5200 7090 250 530
20 6000 5800 7690 250 560
22 6600 6400 8290 250 580
24 7200 6900 8890 250 600
28 8400 7900 10090 250 780
32 9600 8900 11290 250 850
36 10800 9800 12490 320 890
40 12000 10800 13690 320 970
44 13200 11800 14890 350 1180
48 14400 12800 16090 350 1260
52 15600 13800 17290 420 1370

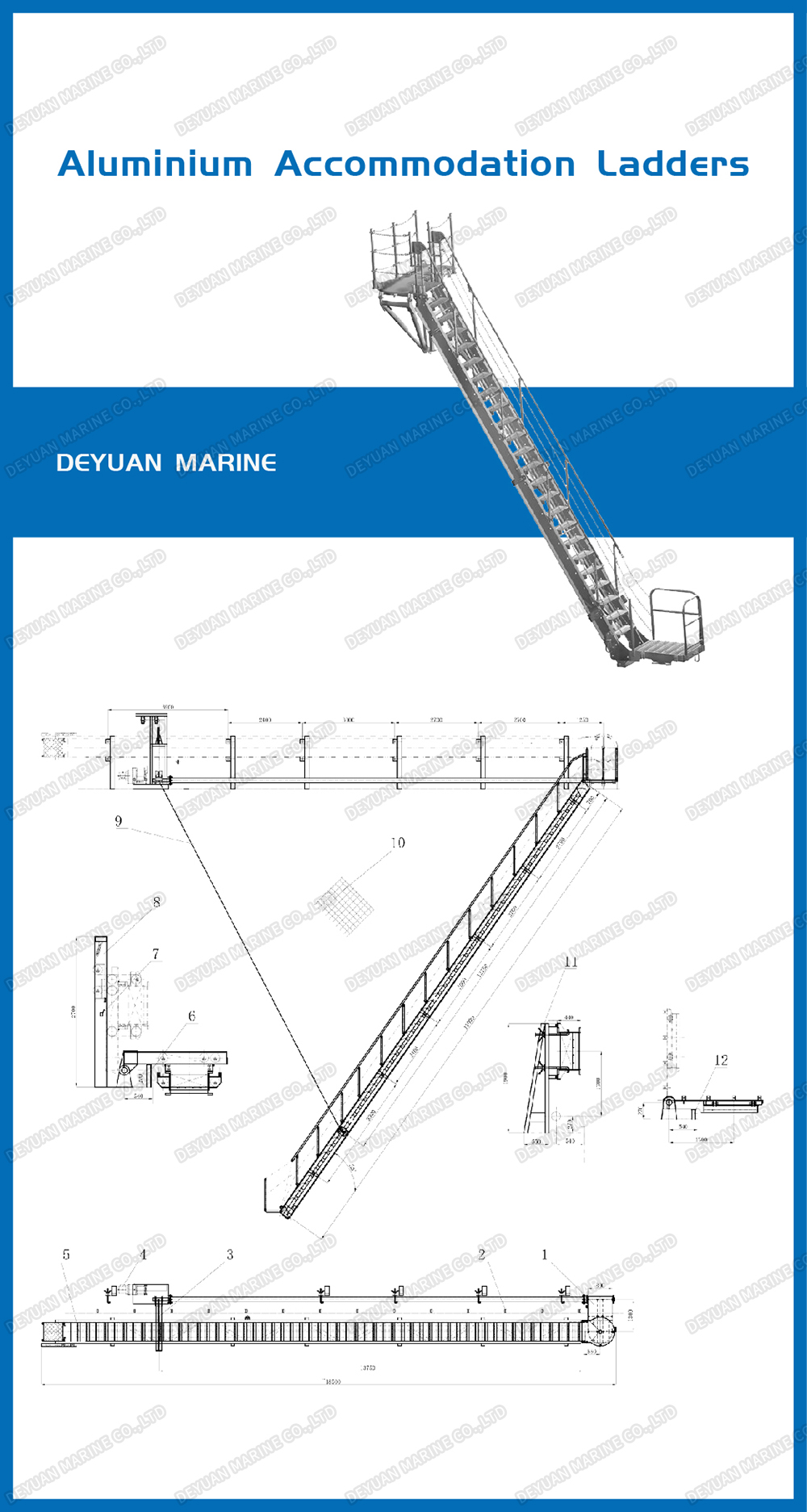

Marine Truss accommodation ladders
