Product Description

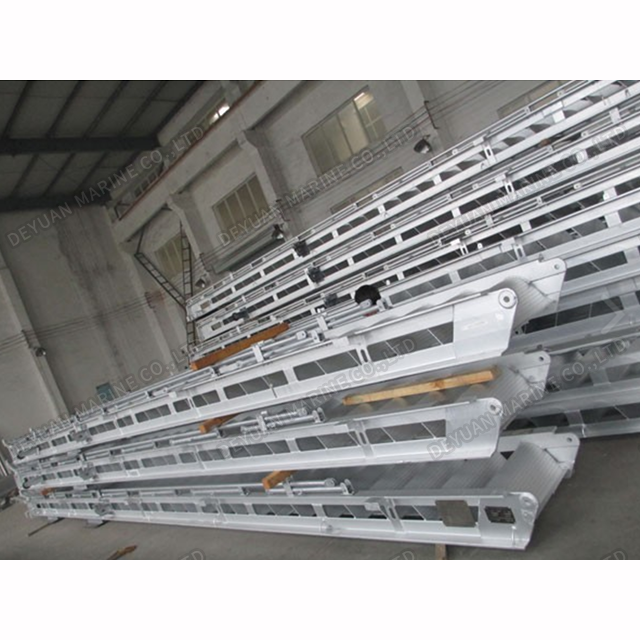

Aluminum Accommodation Ladder For Diver
Introduction of Aluminum Accommodation Ladder For Diver
This kind of accommodation ladders are specially designed for salvage ship & rescue vessel for transferring the divers. Ladders manufactured from marine grade lightweight aluminium.
Features and Benefits of accommodation ladders for diver.
* Designed as per the standard of CB3101-81
*Made from corrosion resistant aluminum alloy
*High quality with good workmanship
*Can be with or without auxiliary platform
*Bespoke designed available
* Specially for salvage ship & rescue vessel
Accommodation Ladders For Diver Parameter
Type A-with auxiliary platform
| Model | Ladder lenght (m) | Steps | Max freeboard H (m) | h x b x δ (mm) | L X B (mm) | Weight (kg) |
| A5.0 | 5.0 | 14 | 2.30 | 180X60X5 | 8100X500 | 1292 |
| A5.5 | 5.5 | 15 | 2.70 | 180X60X5 | 8600X500 | 1340 |
| A6.0 | 6.0 | 17 | 3.20 | 180X60X5 | 9100X500 | 1377 |
| A6.5 | 6.5 | 18 | 3.60 | 180X60X5 | 9600X500 | 1416 |
| A7.0 | 7.0 | 20 | 4.05 | 180X60X5 | 10100X500 | 1451 |
| A7.5 | 7.5 | 21 | 4.50 | 180X60X5 | 10600X500 | 1483 |
| A8.5 | 8.5 | 24 | 5.35 | 240X75X6 | 11600X500 | 1667 |
| A9.5 | 9.5 | 26 | 6.20 | 240X75X6 | 12600X500 | 1750 |
| A10.5 | 10.5 | 29 | 7.10 | 240X75X6 | 13600X500 | 1830 |
Type B-without auxiliary platform
| Model | Ladder lenght (m) | Steps | Max freeboard H (m) | h x b x δ (mm) | L X B (mm) | Weight (kg) |
| B5.0 | 5.0 | 14 | 2.30 | 180X60X5 | 6950X500 | 1137 |
| B5.5 | 5.5 | 15 | 2.70 | 180X60X5 | 7450X500 | 1186 |
| B6.0 | 6.0 | 17 | 3.20 | 180X60X5 | 7950X500 | 1222 |
| B6.5 | 6.5 | 18 | 3.60 | 180X60X5 | 8450X500 | 1260 |
| B7.0 | 7.0 | 20 | 4.05 | 180X60X5 | 8950X500 | 1297 |
| B7.5 | 7.5 | 21 | 4.50 | 180X60X5 | 9450X500 | 1328 |
| B8.5 | 8.5 | 24 | 5.35 | 240X75X6 | 10450X500 | 1513 |
| B9.5 | 9.5 | 26 | 6.20 | 240X75X6 | 11450X500 | 1595 |
| B10.5 | 10.5 | 29 | 7.10 | 240X75X6 | 12450X500 | 1675 |
