Pilot Accommodation Ladders For Sea Going Vessel

Brand: DEYUAN MARINE
Standard: ISO5488
Ladder Material:Aluminium
Steps: fixed arc
Type: Beam or truss designed for option
Certificate: CCS,DNVGL, LR, ABS, BV, NK,KR,RINA etc
Lead time: In stock or 5-7days
Payment: TT or LC
Availability:

Product Description

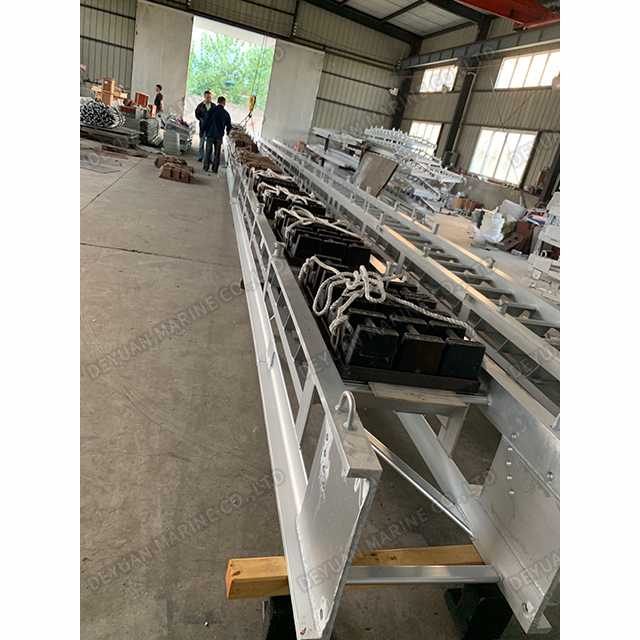

                                Pilot Accommodation Ladders For Sea Going Vessel


Aluminum Pilot Accommodation Ladders product description

Introduction of Pilot Accommodation Ladders

The accommodation ladder is a one point access to ship’s deck for shore personal, port lashing/cargo crew and seafarers and it’s widely used in port, at sea, or in anchorage for getting pilot/ crew onboard ship.

when the free board of the ship is more than 9 meters, it’s necessary to use a combination ladder, an accommodation ladder as well as a pilot ladder, we call the Acc. Ladder as a pilot accommodation ladder at this

As per the regulation, accommodation ladders should not be used at an angle greater than 55°from the horizontal, unless designed and constructed for use at angles greater than these.

A safety net should be mounted in way of the accommodation ladders and gangways where it is

possible that a person may fall from the means of embarkation and disembarkation or between

the ship and quayside.

It usually comes with fixed steps and foldable aluminium handrails outside ladder stringers.

Other Available Ship Ladders

Aluminium Accommodation Ladder

Telescopic Accommodation Ladders

Aluminium Accommodation Ladder For Diver

Aluminium Alloy Wharf Ladder

Aluminium Light Duty Gangways

Aluminium Heavy Duty Gangways

Bulwark Ladders

Ship's Steel Inclined Ladders

Engine Room Ladder

Pilot Rope Ladder

Embarkation rope ladder


Aluminum Pilot ACC.Ladders technical parameters

Pilot Accommodation Ladders Parameter

Steps L1 Max Height
H
L h Weight (kg) Step Distance
(mm)
Angle of
Inclination
12 3600 3600 5290 250 320 300(350) 55°(60°)
14 4200 4100 5890 250 330
16 4800 4600 6490 250 340
18 5400 5200 7090 250 530
20 6000 5800 7690 250 560
22 6600 6400 8290 250 580
24 7200 6900 8890 250 600
28 8400 7900 10090 250 780
32 9600 8900 11290 250 850
36 10800 9800 12490 320 890
40 12000 10800 13690 320 970
44 13200 11800 14890 350 1180
48 14400 12800 16090 350 1260
52 15600 13800 17290 420 1370

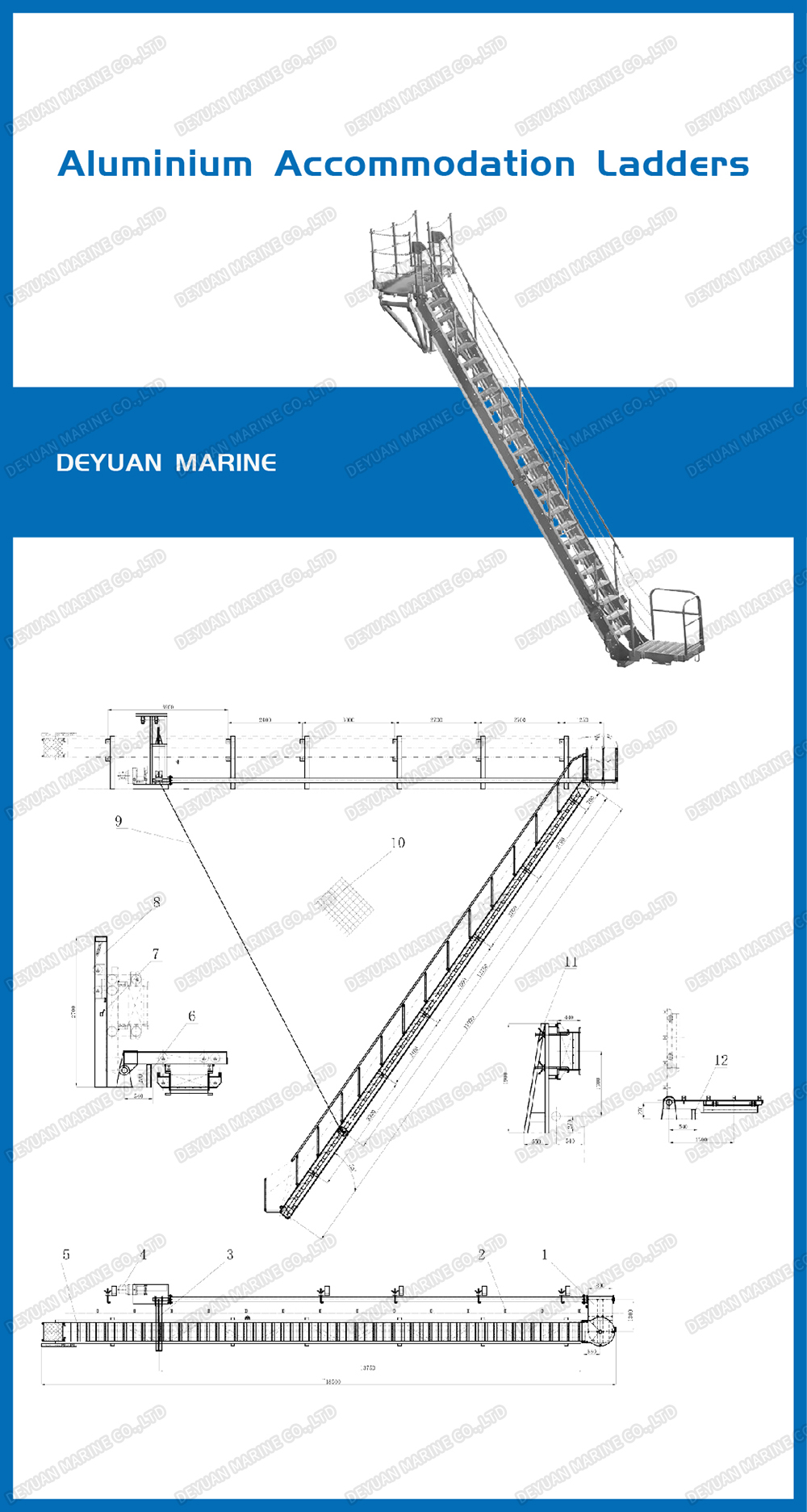

Heavy duty Pilot Accommodation Ladder
