Product Description

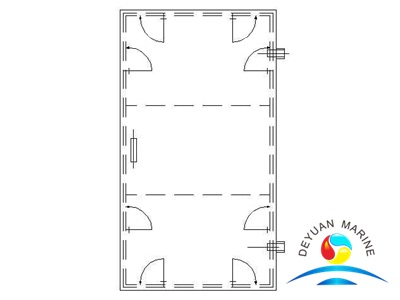

BF Type Marine Single-leaf Steel Weathertight Door
Level B steel door test request: It should passed the hose test which nozzle diameter 12.5mm,water pressure 0.25Mpa
| Specification No. | Clear Size | Cut-out Size | Door Leaf Size | Door Leaf Thickness | Dog Clip Quantity | Stiffener Specifications | Weight(kg) | ||||
| Wxh | W2Xh2 | BF | BY | W1Xh1 | t | t=6 | t=8 | ||||
| 1050 | 500X1000 | 600X1100 | R80 | R150 | 555X1055 | 6 | - | 6 | 50X5 | 82.5 | - |
| 1260 | 600X1200 | 700X1300 | R80 | R150 | 655X1255 | 6 | - | 6 | 50X5 | 100.7 | - |
| 1460 | 600X1400 | 700X1500 | R80 | R150 | 655X1455 | 6 | 8 | 6 | 65X6 | 112.2 | 135.4 |
| 1475 | 750X1400 | 850X1500 | R80 | R150 | 805X1455 | 6 | 8 | 6 | 65X9 | 128.4 | 155.7 |
| 1490 | 900X1400 | 1000X1500 | R80 | R150 | 955X1455 | - | 8 | 8 | 75X9 | - | 181.5 |
| 1660 | 600X1600 | 700X1700 | R80 | R150 | 655X1655 | - | 8 | 6 | 65X6 | - | 148.3 |
| 1675 | 750X1600 | 850X1700 | R80 | R150 | 805X1655 | - | 8 | 6 | 65X9 | - | 170.4 |
| 1690 | 900X1600 | 1000X1700 | R80 | R150 | 955X1655 | - | 8 | 8 | 75X9 | - | 198.1 |
