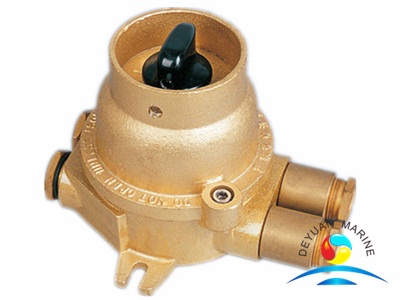

dCHH202 Series Explosion-proof Switch
Application:
Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.
Products characteristic:
The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.
Production authetication:
This series of products have passed the Examination of National Explosion proof Electrical Test Center, and was approved by “CCS”(China classification society).
Adopt standard:
IEC60079
Specification:
| Code | 14105/2 | 14105/D | 14105/3 | 14105/4 |
| Type | DCHH202-2 | DCHH202-2A | DCHH202-3 | DCHH202-4 |
| Voltage | 380V/16A |
| Explosion proof mark | Exde II C T6 |
| Protection class | IP56 |
| Material | Brass |
| Size | 134mm*130mm*110mm |
| Weight | 2.25kg | 2.25kg | 2.27kg | 2.27kg |
