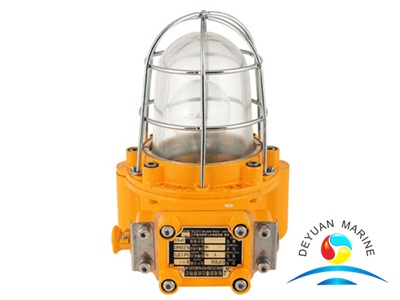

CFD2 Series Incandescent Explosion-proof Light
Products characteristic:
*with good quality rubber handle,good lampshade.
* with high waterproof performance and anticorrosive performance.
*confirm to the standardGB3836-2000,GB12045,En50014,En50018,En60079.
Explosion-proof light CFD2,CFD3
Products characteristic:
*Application:Used in the place with explosive air mixture,with explosive material丨丨A,丨丨B.
The temperature group is T1-T4 in cabin and outdoor place
*with brass shell,glass lampshape,with brass guard
*Two gland available,one is tube screw type,screw is G3/4,the other is buhle-type
Specification:
| Explosion-proof light CFD2,CFD3 |
|
| type | Explosion-proof mark | Voltage | Lamp holder | Power | Cable outside Diameter | Protection class | illumiant | weight | Material |
| CFD2a | Exed 11 BT3 | 220V | E27 | 200W | Φ11-Φ14 | IP55 | Incandescent | 19kg | brass |
| CFD2b | Exed 11 BT3 | 220V | E27 | 125W | Self-ballast
high-pressure mercury lamp | 19kg | brass |
| CFD3 | Exed 11 BT4 | 24V
110V
220V | E27 | 25W
40W/60W
40W/60W/100W | Incandescent | 13.5kg | brass |
