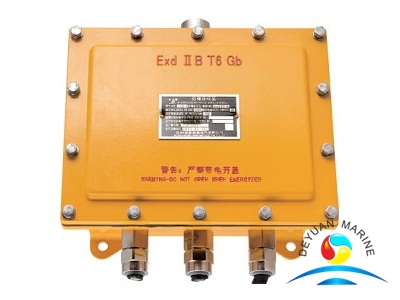

JXD8-4 Explosion-proof Junction Box
Application:
Applies to ships, oil platforms, chemical containing II A, II B, T1 to T6 group explosive gas mixtures 1 and Zone 2 place.
Characteristic:
1. The body is made of high quality aluminum die-casting molding, using M22x1.5 thread.
2. Sealed structure, protective properties.
Note:
The in let EX-proof cable gland is one,and outlet EX-proof cable gland can be three or less.
Specification:
| Electric current | 20A |
| Voltage | AC380V |
| Explosion-proof mark | Exd II B T6 Gb |
| Protection class | IP56 |
| Material | Cast Aluminum alloy |
