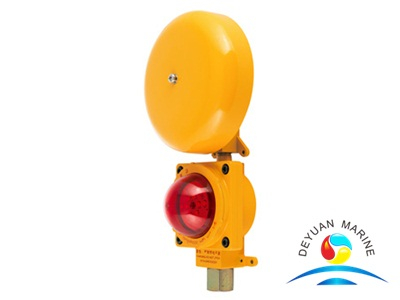

CFBLD Series Explosion-proof Alarm
Application:
Applies to the place of containing hydrogen gas and air mixture, acetylene gas and air mixture, and the other containing a flammable gas mixtures 1 -2 dangerous place alarm.
Characteristic:
1. The body is made of high quality aluminum die-casting molding, using M22x1.5 thread.
2. Sealed structure, protective properties.
Adopt standard:
Conform to GRADE ENTRY NORMS FOR STEEL SHIPS and National standard GB3836-2010.
Specification:
| Type | CFBLD-24Z | CFBLD-220J |
| Voltage | DC 24V | AC 220V |
| Explosion-proof mark | Exd II C T6 Gb |
|
| Protection class | IP56 |
|
| Material | Cast Aluminum alloy |
| Cable outside Diameter | Φ8-Φ11 |
