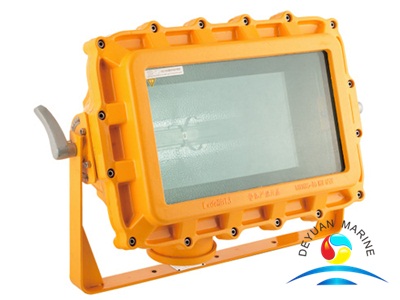

CFT3 Explosion-proof Flood Light
The scope application:
Applied to illumination of explosive gas place zone1 or zone2.
Products characteristic:
1.the light body and ballast box is divide body design it has the function of compact structure and ensure explosion proof.
2.The light can adjust vertical ±45degree.
3.The shell adopt high intensity aluminum alloy material,it has the ability of high collision proof and shock proof.
4.The transparent part adopt aluminum alloy,it can bear high machinery strength and temperature change.
5.The reflector adopt high purity aluminum plate,the surface through exact light distribution design good effect of reflector.
Adopt standards:
Conform to international IEC standard and GB3836.1~3, GB7000.7.
Specification:
| Explosion-proof spot light CFT3 |
| type | Explosion-proof mark | Voltage | Lamp holder | Power | Cable outside Diameter | Protection class | illumiant | weight | Annex | Material | Luminous flux | Annex |
| CFT3 | Exed 11 BT4/Exed 11 BT3 |
| E40 | 400W/1000W |
| IP56 | High-pressure sodium lamp/mental haloid lamp | 9.2kg | - | aluminum | 47000/36000 | Explosion-proof ballast box,voltage:110V,220V,power:MAX1000W,Mark:Exde IIBT5 |
| 220V/50Hz | Φ11-Φ13 | Ballast | 120000 |
| 220V/60Hz |
| Ballast |
|
|
|
|
|
