Product Description

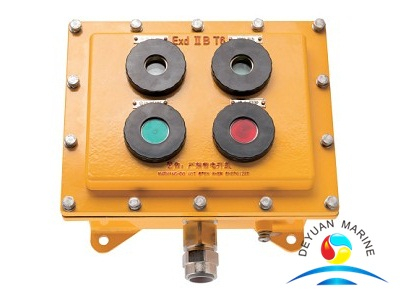

CFA-2-2 Explosion-proof Button Box
Application:
Applies to ships, oil platforms, chemical containing II A, II B, T1 to T6 group explosive gas mixtures 1 and Zone 2 place.
Characteristic:
1. Product shell is made of the A1Si12 aluminium alloy die-casting, surface electrostatic spray, stainless steel exposed fasteners.
2. Overall enclosure with explosion-proof structure, highly waterproof, dust-proof ability, button box seals are made of silicone rubber, its high corrosion resistance, built-in indicator, two buttons, optional according to customer requirements 1-2 indicator or the 1-2 buttons; buttons contacts is a normally open a normally closed; signs inside and outside the ground, reliable and secure ground.
3. Rated voltage 380V AC, rated current 5A, protection IP56.
4. Armored cable wiring, cable diameter 13 to 14mm.
Adopt standard:
National standard GB3836.1-2010,GB3836.2-2010.
Specification:
Voltage | 550V/20A |
Explosion-proof mark | Exe II C T6 |
Protection class | IP56 |
Material | Aluminum |
Cable outside Diameter | Φ10-Φ12.5 |
