Product Description

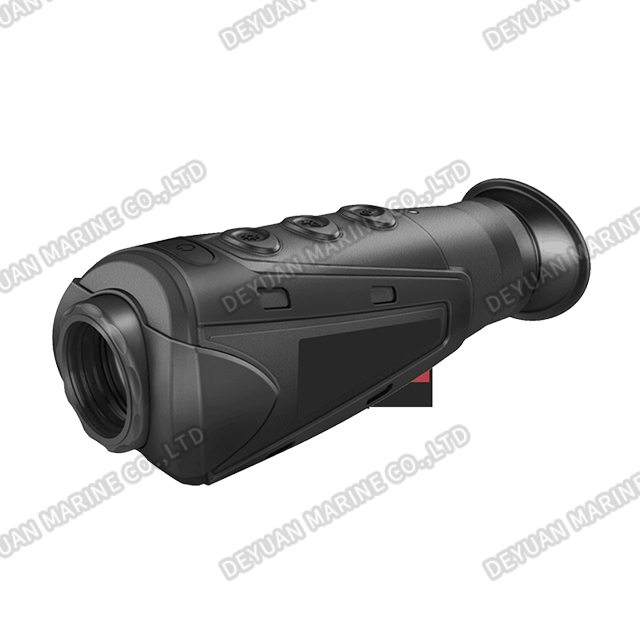

YJZD8621W Handheld Infrared Thermal Imaging Camera
Product Introduction
YJZD8621 hand-held infrared thermal imager is newly upgraded. It can be connected to the mobile phone APP through WIFI, remotely control the host, and realize the function of taking photos/videos/screen sharing; the image and imaging effect are better, the target highlighting ability is stronger, and the detection distance is longer. Small and lightweight, easy to carry. Long battery life and ruggedness make it suitable for a variety of environments.
Features
Intuitive button design, clear functions, easy operation without training;
Ergonomic design, long-term use is still comfortable;
Ultra-quiet and light-leakage-proof design, without exposing yourself when in use;
Built-in lithium battery, battery life up to 5 hours, and can be used continuously with external portable power supply;
Standard Micro USB charging interface, suitable for a variety of charging methods;
Support laser pointer and lighting to choose one;
IP66 super protection level. Resistant to 1 meter drop, suitable for outdoor use;
Application fields
Hunting observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security.
Technical Parameters
| Name | Handheld Infrared Thermal Imager |
| Product model | YJZD8621W |
| Detector | |
| Detector type | Uncooled focal plane 400*300@17μm |
| Response band | 8μm-14μm |
| Focal length | 25 |
| Focus | manual focus |
| Field of view | 14.6°x11.1° |
| Micro display | color 0.2 inch LCOS screen |
| Eyepiece | Monocular display, adjustable diopter ±4 |
| Image Processing | |
| Frame rate | 50Hz |
| Electronic amplification | x2, x4 |
| Palette | Black Hot, White Hot, Red Hot 1, Red Hot 2, Red Hot 3 |
| Functions | |
| Crosshairs | Yes |
| zoom | yes |
| Freeze | yes |
| Charging indicator light | yes |
| Picture Enhancement | Yes |
| WIFI | yes |
| Working light | yes |
| Power system | battery |
| Built-in lithium battery | 3.7v, 3200mAh |
| Working time | ≥5h |
| Adapter | Standard USB power adapter 5VDC, 10W maximum rating |
| Electrical Interface | |
| USB interface | charging |
| Analog video MCX | choose MCX push-in video interface, PAL/NTSC |
| Environmental Adaptability | |
| Working temperature | -10℃～50℃ |
| Storage temperature | -30℃～60℃ |
| Humidity | 10%～95%, non-condensing |
| Shock | 30G, 11ms half-sine IEC60068-2-27 |
| Vibration | 10Hz～150Hz～10Hz 0.15mm IEC60068-2-6 |
| Protection class | IP66 |
| Physical Characteristics | |
| Weight | 375g |
| Size(mm) | 168x67x62 |
| Package Contents | |
| Standard configuration | Thermal imaging camera, power adapter, USB cable, video cable, lens cap, wrist strap, inner bag, quick start guide, shoulder strap. |
| Optional | 40mm lens (field of view 9.3°x7.0°) |
| Detection Distance | |
| Person | 1.8*0.5m 700m |
| Car | 2.3*2.3m 1700m |
| Recognition distance | People:1.8*0.5m 350m Car:2.3*2.3m 700m |
