Product Description
PVS14L Small Helmet-mounted Low-light Level Night Vision Device
Product Introduction
This small night vision device is suitable for helmet mounted. It weights only 230g with battery, is the solid choice for individual reconnaissance.

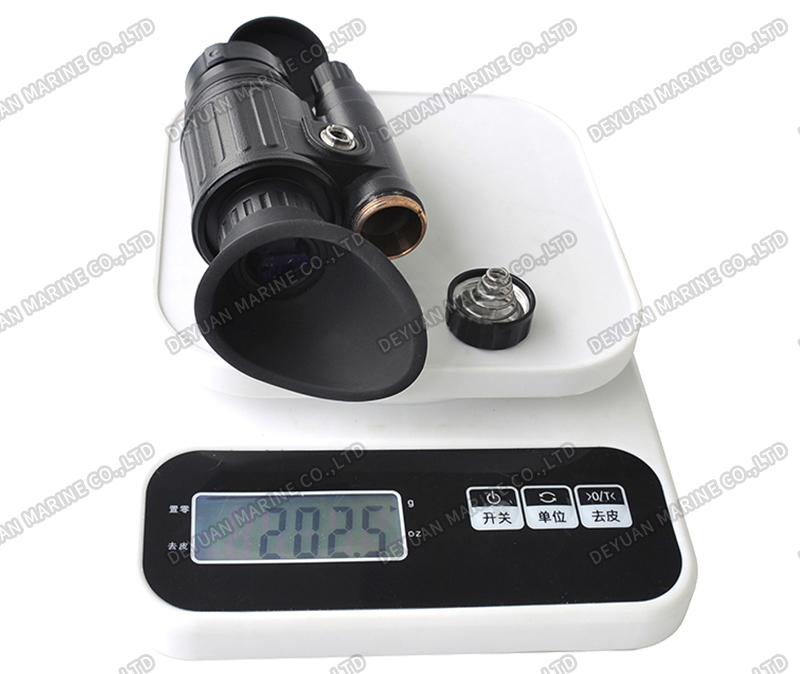

It weights only 202.5g without battery
Technical Parameters
| Model | PVS14L |
| Source | A single 4.2-VCR123 rechargeable battery |
| Host Weight | Host weight: 230g (including battery) |
| Working Temperature | -40℃~+50℃ |
| Storage Temperature | -50℃~+60℃ |
| Magnification | 1X |
| Field Of View | ≥40.2° |
| Focusing Range | 230mm~∞ |
| The Range Of View Adjustment | -4～+2SD |
| Image Intensifier | Super 2 generations |
| Identification distance: in visibility 10km, relative humidity 60%, illumination l 10-3Lx, the identification distance of upright soldier (1.7m×0.5m) is 130m under opaque background. | |
