Monocular Night Vision Device with Infrared Fill Light

Model: YJM88
Magnification: 6X
CCD Type: 1/3″ Sony CCD
IR Wavelength: 850nm
SD card: Support upto 16G
Viewing Distance: 500 Meters
Weight: 480g
Warranty:1year
Operation: Handheld/Tripod-mounted
Availability:

Product Description

Monocular Night Vision Device with Infrared Fill Light


Product Description

Night vision telescope YJM88 handheld multi-function with SD card color black and white conversion digital night vision device


The high-definition night vision device is a compact hand-held low-light night vision device with a wide range of applications, such as hunting, mountain climbing, fishing, camping, boating, observation and other outdoor activities in low light. It is also suitable for forest fire prevention, public security, Armed police, customs, frontier defense, anti-smuggling, anti-narcotics, security guard night patrol, investigation and evidence collection. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.

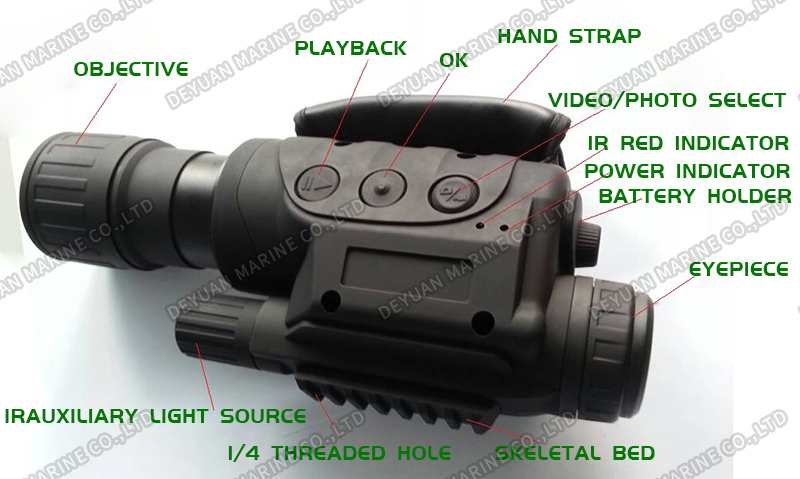

Monocular Night Vision Device with Infrared Fill Light 1


We are a brand direct manufacturer of telescopes. Our main products are 62-type telescopes, high-definition telescopes, binoculars, toy telescopes, children's telescopes, low-light night vision devices, thermal imaging cameras, etc.

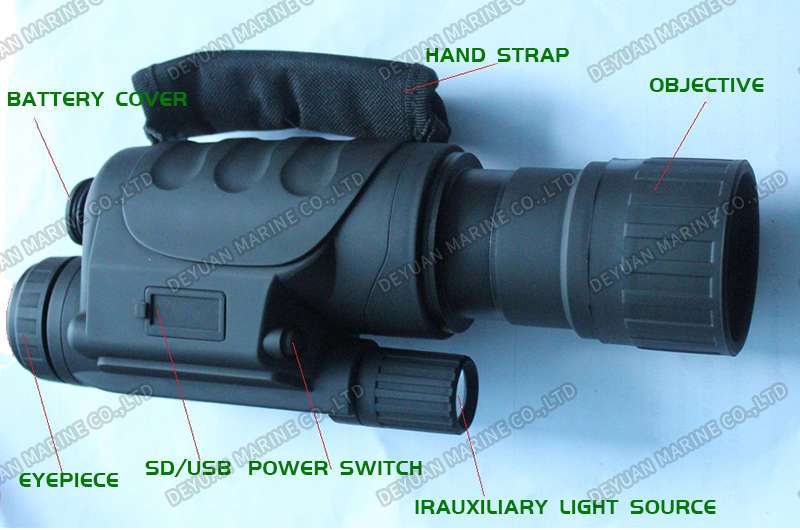

Monocular Night Vision Device with Infrared Fill Light 2


Features


1. SD card can be inserted


2. Take photos and videos


3. The data line can be connected to the display for real-time monitoring


4. Automatic conversion of day color and night black and white imaging


5. Automatic induction of infrared fill light


6. External handle, tripod and auxiliary light can be connected.


Technical Parameters

Product model YJM88
Magnification 6
CCD type 1/3″ Sony CCD
Objective mirror diameter 60 MM
Resolution rate 500 TVL
Infrared wavelength 850nm
Total pixel Photo:  2048×1536    Video: 752×582
Minimal illumination Color 0.1 Lux (F1.2,50 IRE, AGC ON); black and white: 0.01 Lux (F1.2,50 IRE, AGC ON)
SD memory card Up to 16GB of support
Field of view 12°
Distance of exit pupil 12 mm
Viewing distance 500 Meters
Infrared power 0.5mW
Diopter -4 ~ +4
Infrared action distance From 80-100 m
White balance automatic white balance
Focal distance 1.5 Meters
Day and night switch voluntarily
Video monitor 525 vidicon video out TV
Source 3 sections of 3V CR123A lithium batteries
Working temperature -20℃~60℃
Working humidity Relative humidity is below 90%
Weight 480g
Guarantee period 1-year lifetime maintenance
