Product Description

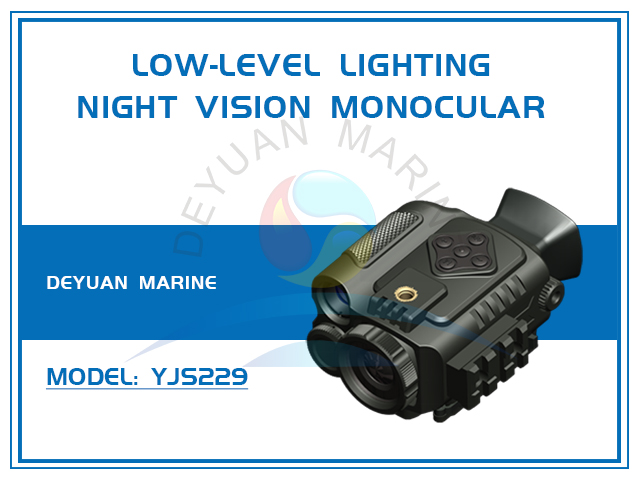

YJS229 Low-level Lighting Night Vision Monocular
Digital night vision devices are an important branch of night vision devices. According to incomplete statistics, digital night vision devices occupy 40% of the market share of night vision devices. Digital night vision devices are widely used in public security, fire protection, forests and other outdoor fields. It is also widely used in various monitoring fields.
Technical Parameters
| Optical magnification ratio | 1 Time |
| Digital magnification rate | 5 times |
| Objective mirror diameter | φ18mm |
| Lighting infrared wavelength | 850µm |
| Weak light visual range | 2.0m-～∞ |
| No light, infrared illumination visual range | All-black auxiliary lighting is 2.0m~200m |
| Display Image resolution | 350×560 |
| Camera Type | CMOS |
| Camera Pixel | 300000 Pixel |
| Spectral coverage | 450-1100µm |
| Photosensitive Dimensions | 13" |
| Dynamic range | 58dB |
| Minimal illumination | 0.01Lux |
| FOV FOV | 16.8º×20.2º |
| Distance of exit pupil | 10-15mm |
| Infrared power | 1W |
| Diopter regulation | ±5º |
| White balance | voluntarily |
| SD memory card | 4-32G |
| Day and night switch | voluntarily |
| Video monitor 525 vidicon video out | have |
| Working temperature | -20℃ - 45℃ |
| Operating humidity | Maximum 70% |
| Battery Category | Pecharable lithium battery 14500 750 MAH |
| Charge power supply | 5V2A 110-220v adapter |
| Working voltage | 3.5V - 4.2V |
| Earthquake-proof function | not have |
| USB joggle | mini USB Interface |
| Focal length setting | objective mirror focus |
| Scaffold Interface | 14" |
| Waterproof performance | IPX4 |
| Photo Capability | have |
| Audio and video recording function | have |
| Screen brightness adjustment function | have |
| Lighting brightness adjustment function | have |
| Photo, video, playback and delete features | have |
| Time-setting function | have |
| Product size | 102×76×49mm |
| Product Weight | 170g |
