Product Description

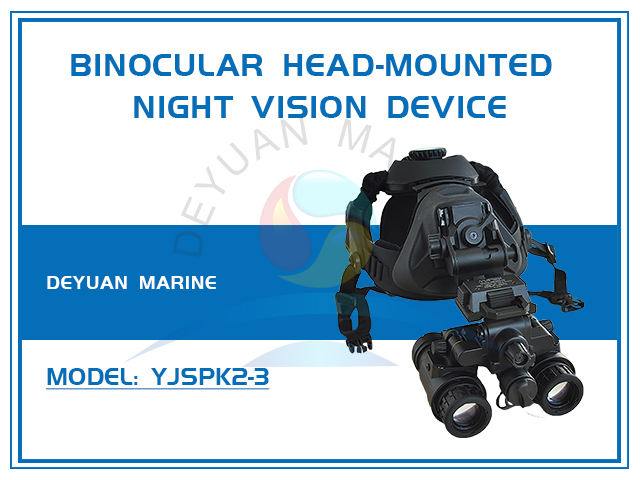

Binocular Head-mounted Night Vision Device YJSPK2-3
Product Description
YJSPK2-3N&D binocular binocular night vision device is a high-performance pure head-mounted night vision device built with reference to the active head-mounted night vision device PVS-31 in the United States. It is divided into low-light version YJSPK2-3N and digital version YJSPK2-3D two models.
The digital version of YJSPK2-3D has the characteristics of strong adaptability to ultra-low illumination environment, high imaging quality, multi-function, day and night, electronic zoom, clear imaging, high cost performance, etc. It is very suitable for general military fans and night outdoor enthusiasts. . The low-light version YJSPK2-3N has the characteristics of large field of view, high definition, no distortion, light weight, and high strength (the overall performance greatly exceeds the original US military product) and is an ideal choice for night equipment.
Technical Parameters
| Project | YJSPK2-3N | YJSPK2-3D |
| Structure mode | Can be arbitrarily flip type binocular double cylinder | Can be arbitrarily flip type binocular double cylinder |
| Flip detection | Automatic check up and shutdown | Automatic check up and shutdown |
| Power supply mode | Lithium battery (CR123x1) / CR23x4 external battery case | Lithium battery (CR123x1) / CR23x4 external battery case |
| Battery voltage range | 2.6-4.2V | 2.6-4.2V |
| Way to install | Head (standard American helmet interface) | Head (standard American helmet interface) |
| Control mode | ON/IR/AUTO | ON/IR/AUTO |
| Complete machine power consumption | <0.1W | <1.2Wx2 |
| Battery capacity | 800-3200maH | 800-3200maH |
| Battery life | 40-100H | 0.5-3H |
| Optical magnification | 1X | 1X |
| Full field of view | 50 + / -2 degrees | 25 + / -2 degrees |
| Parallelism of optical axis | <0.1 Degree | <0.1 Degree |
| Image intensifier | Super second generation / third generation low-light night vision tube | Ultra-low-illumination of CMOS |
| Light pass aperture | F1.18 22.5mm | F1.6 7.8mm |
| Optics MTF | 120LP/mm | 160LP/mm |
| Optical distortion | 3% Max | 0.5%Max |
| Relative illumination | >75% | >80% |
| Optical coating | Ultra-broadband multilayer optical increasing penetration film | Ultra-broadband multilayer optical increasing penetration film |
| Focus range | 250mm-∞ | 250mm-∞ |
| The focus mode | hand movement | hand movement |
| Visual lens out of pupil distance | 30 | 30 |
