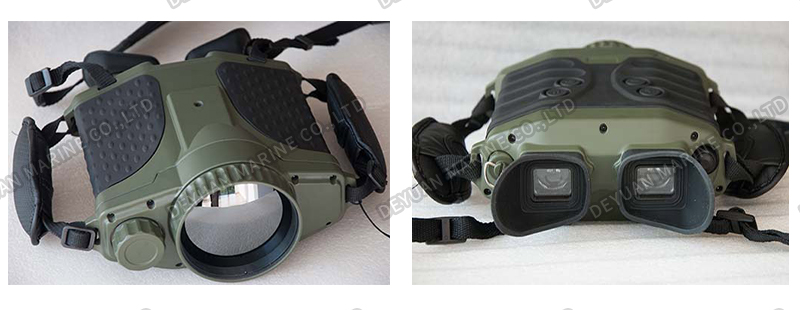

KA705 Telescope Infrared Thermal Image Night Vision

KA705 Telescope Infrared Thermal Image Night Vision

Product Introduction

Thermal imager Model 705 has hot spot tracking function and can be used for forest fire prevention. It is a real night vision binoculars for use with power system line checking.

The thermal imager 705 is an infrared night vision telescope with camera and video functions for night observation and target search. Its thermal imager is an optoelectronic product with ASi uncooled detector and unique imaging circuit components, precise optical system and reliable structural design.

It has infrared imaging effect, ultra-low power consumption, simple operation, compact and stable structure. It can be used for handheld and fixed observation, night reconnaissance and target search. The 705-type thermal imager objective lens adopts a standard lens of 75mm. The objective lens has a large diameter and a large field of view. It is easy to observe and search for targets at night.

Key Operation Instructions

KA705 has a total of 4 operation buttons, which are easy to operate and easy to remember.

Power switch key: control the power on and off of the whole machine. (power)

Function operation keys:

Trigger the KEY M key to display the status menu:

Press and hold the KEY C button to display a circular mark in the upper right corner, indicating that the video and camera function is activated. At this time, short press the C button to take pictures, and long press the C button to record.

Trigger the KEY+ key to realize electronic zoom *1, *2, *4 conversion.

Trigger KEY – The key enables polarity inversion.

Technical Parameters
