Product Description
Infrared Thermal Imaging Night Sight
This product adopts uncooled focal plane detector, servo control and real-time digital image processing circuit independently developed and produced by our company. It can work continuously day and night, and has the ability to penetrate particles such as fog, smoke, and dust, and can simultaneously complete search, reconnaissance, and aiming and shooting actions. It is an ideal assistant for anti-terrorism, law enforcement, anti-smuggling, and anti-narcotics.
Features
Advanced FPGA image processing technology 384X288/640X480 (optional) high resolution 60Hz, real-time imaging, fast movement without smear
No baffle design, unique digital enhancement algorithm
Professional telephoto germanium lens, 2x, 4x digital zoom
White hot/black hot/brown/iron red/rainbow, various colors are optional
Standardized interface, with sight cross, automatic adjustment of reticle color, extremely low power consumption, can work continuously for a long time
Convenient and easy-to-operate keys and digital menu
100-level brightness control, 100-level contrast control
Manual and automatic image enhancement modes, which can find targets in extremely harsh environments
1024X768 high resolution OLED eyepiece system
High system reliability, strong drop and shock resistance
Strict and reliable waterproof performance, suitable for all-weather indoor and outdoor use
Technical Parameters
| Types of detectors | VOX non-cooled focal plane |
| Pixel | 384*288,17um |
| Sensitivity | ≤40mk f/1, 300K, 60Hz |
| Spectral coverage | 8～14μm |
| Lens choice | Germanium metal manual focus lens, coated with hard carbon and anti-reflective coating |
| 54mm | |
| Angle of field | 10°(H) x 7°(V) |
| Spatial resolution | 0.33mrad |
| F# | 1 |
| Zoom range | 10 m-Unite away |
| Eyepiece | Full-glass diopter eyepiece |
| Focus | hand movement |
| Laser ranging | A body show |
| Distance measurement distance | 8-1200M |
| Photo recording function | You can take photos |
| Video monitor 525 vidicon video out | RS170 CCIR / PAL composite video (60 HZ) |
| Display | 0.55 " OLED / 1024x768 pixels |

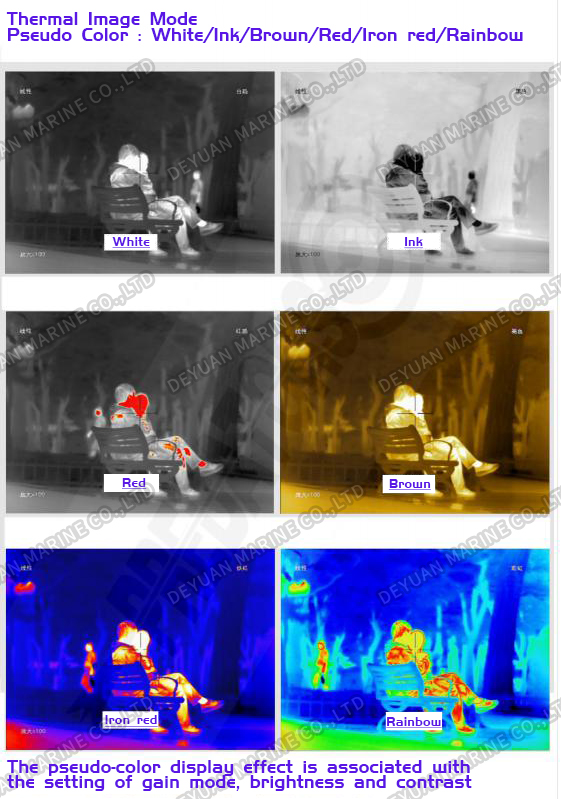

| Image polarity | White hot, black hot, brown, red hot, iron red, rainbow |
| Electronic zoom | 1X-2X-4X |
| Cross curve | Built-in removable crossline aiming at the target |
| Battery type | 3.7V rechargeable lithium battery, 3200 mAhx 1 |
| Power dissipation | 1.2W |
| Environment | |
| Service temperature | -10℃～ +45℃ |
| Storage temperature | -30℃～ +60℃ |
| Impact resistance | Earthquake shock drop of 1 meter |
| Physical parameters | |
| Sheathing material | aerolite |
| Weight | 750g (without the lens) |
| Overall dimensions (length x, width x, height) | 200mm (L)x Φ55 mm |
Packing details

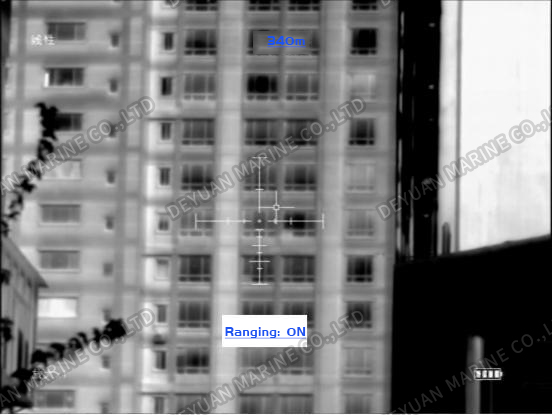

Effect Display
