Product Description

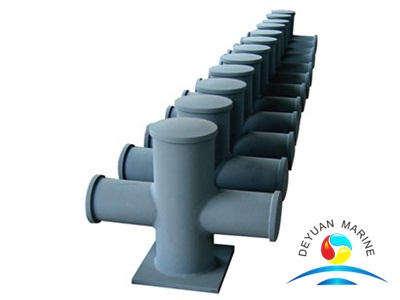

Dyuan Marine wharf cross bitt is made by professional production team and has the strict test of the marine boat cross bollard .We have two types of Single cross bitts designed for small ships,A type and B type.The optional material is cast steel or stainless steel. The marine boat cross bitt surface can be primed and galvanised or painted finish.
Marine corrosion resistance cross bollard information
1.Type: wharf corrosion resistance cross bollard
2.Nominal Diameters: 150 to 350mm.
3.Three applicable rope types: steel rope, synthetic fiber rope, hemp rope.
4. Industrial Standard: GB 10106-88.
5.Material Type: cast steel/stainless steel.
6.Polished welds, no cracks, warp, skew or any defects that influence function.
7.Get quality certificate by technical inspection department
8. Surface: bitumen paint.
9.One years warranty;
10. Ship Cross Bitts can be customized.
| Nominal Dia. | Suitable cable's MBL KN(tf) | Suitable cable's max.dia | H | B | h | D | D1 | D2 | D3 | d | Weight Kg | |||
| Steel wire | synthetic fiber rope | Hemp rope | ||||||||||||
| 150 | 117(12) | 13 | 30 | 44 | 480 | 460 | 280 | 168 | 114 | 206 | 158 | 240 | A B | 31 33 |
| 200 | 225(26) | 19.5 | 45 | 64 | 560 | 520 | 320 | 219 | 168 | 260 | 210 | 280 | A B | 62 66 |
| 250 | 382(39) | 26 | 56 | 80 | 640 | 610 | 360 | 273 | 219 | 310 | 260 | 340 | A B | 98 105 |
| 300 | 549(56) | 30 | 70 | 104 | 680 | 660 | 380 | 325 | 273 | 360 | 310 | 400 | A B | 143 153 |
| 350 | 686(70) | 34.5 | 77 | 120 | 720 | 720 | 420 | 351 | 273 | 400 | 314 | 440 | A B | 192 204 |
