Product Description

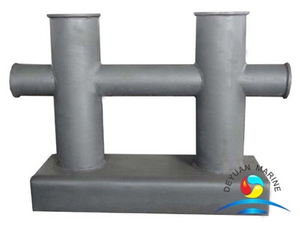

Marine Used Erosion Resistance Cast Steel Bollards Type B
Marine used erosion resistance bollards Type B is designed as per the CB/T 554-96 standard.Under the standard, there are four types of marine used bollards ,type A,type B,type C,type E.
We supply the erosion resistance bollards with cast steel or Iron etc ,All our erosion resistance bollards are finished in good workmanship,with professional test ,one layer of shopprimer standard finishing.
Marine used cast steel bitt can be designed as per your request,warmly welcome you to send us your inquiry.
Below is the date sheet of erosion resistance cast steel bollards for your reference ,If you have an other questions of erosion resistance cast steel bitt please contact us .
| Nominal DIA(mm) | Wire rope's max breaking load KN | Wire rope's max diameter(mm) | D | D1 | A | tmin | tmin | H(mm) | |||||||
| Wire rope | hemp rope | synthetic fiber rope | no sheathed deck | sheathed deck | |||||||||||
| 6×24 | 6×30 | 6×37 | |||||||||||||
| 160 | 49 | 9.3 | 11 | 8.7 | 90 | 20 | 168 | 210 | 400 | 10 | 6 | 9 | 8 | 250 | 310 |
| 200 | 78 | 13 | 13 | 13 | 110 | 26 | 219 | 270 | 500 | 10 | 8 | 9 | 8 | 300 | 360 |
| 250 | 118 | 15 | 17.5 | 15 | 130 | 30 | 273 | 335 | 630 | 11 | 10 | 9 | 8 | 380 | 440 |
| 315 | 196 | 20.5 | 21.5 | 19.5 | 170 | 39 | 325 | 390 | 800 | 15 | 12 | 9 | 10 | 480 | 540 |
| 355 | 255 | 24 | 24 | 21.5 | 200 | 45 | 351 | 420 | 890 | 17 | 13 | 12 | 10 | 530 | 590 |
| 400 | 314 | 26 | 28 | 24 | 235 | 53 | 402 | 480 | 1000 | 18 | 14 | 12 | 10 | 600 | 660 |
| 450 | 382 | 30 | 30 | 28 | 250 | 56 | 450 | 545 | 1130 | 19 | 16 | 12 | 10 | 680 | 740 |
| 500 | 451 | 32 | 32.5 | 30 | 280 | 64 | 500 | 500 | 1250 | 20 | 18 | 12 | 12 | 750 | 810 |
