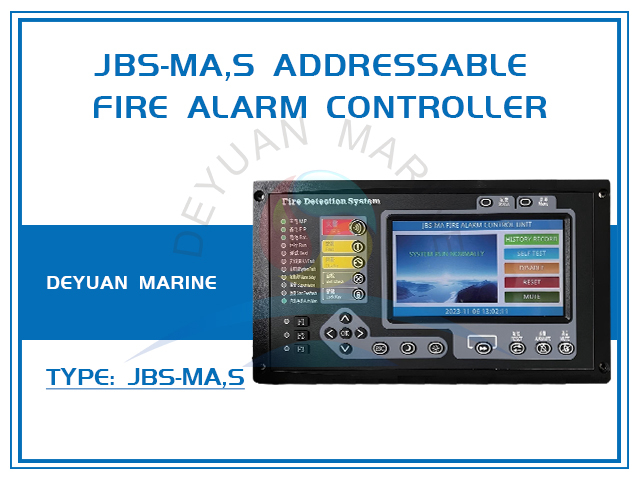

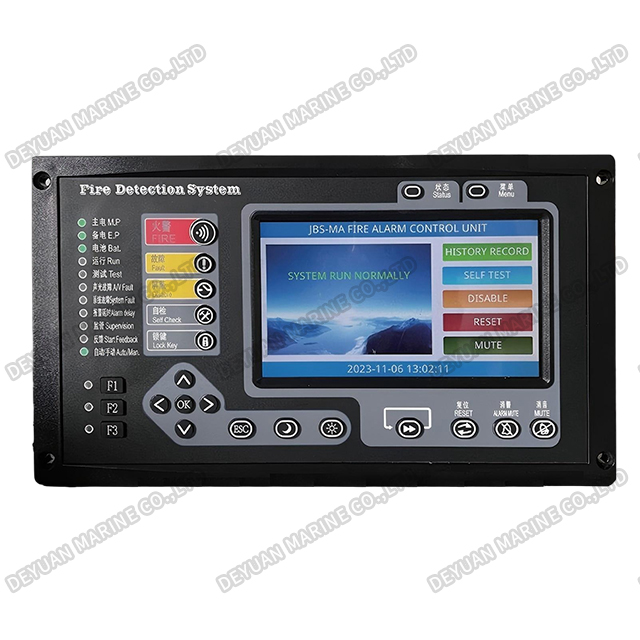

JBS-MA,S Addressable Fire Alarm Controller
Product Introduction
The JBS-MA,S Marine Addressable Fire Alarm Controller is a state-of-the-art, wall-mounted fire detection and management system engineered for modern vessels. Fully compliant with IMO SOLAS regulations and major classification society standards, it provides superior, intelligent protection in demanding maritime environments.
Utilizing advanced addressable loop technology, the system precisely identifies the exact location and status of each connected device (smoke detectors, heat detectors, manual call points) on a digital display. This enables rapid pinpointing of incidents, efficient troubleshooting, and reduced downtime. The rugged, corrosion-resistant enclosure houses an intuitive interface with a clear LCD screen for real-time monitoring, event logging, and system configuration. It seamlessly integrates with critical onboard safety systems, including CO2 release, public address/general alarm, and engine room shutdown. The JBS-MA,S delivers unmatched reliability, simplified maintenance, and enhanced crew safety through precise, intelligent fire management.

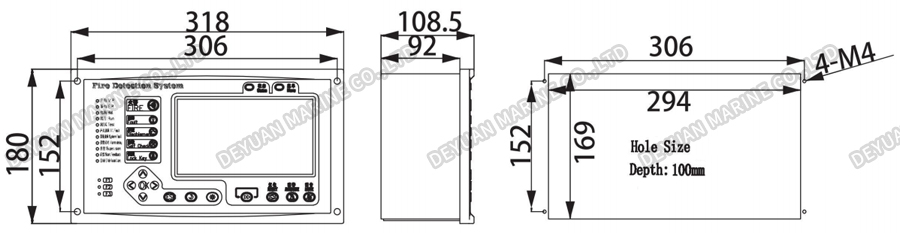

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
