Product Description

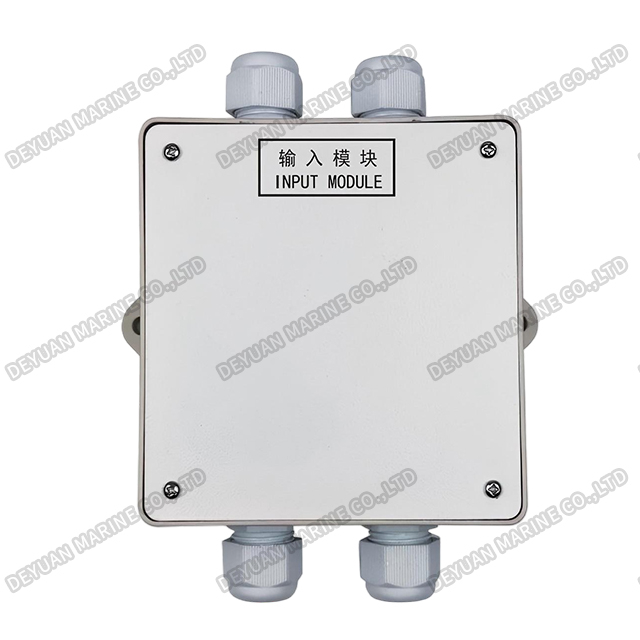

JSKM-M900M Input Module For Fire Alarm System
Product Introduction
The Marine Input Module is a critical interface device within an intelligent addressable fire alarm system onboard vessels. Its primary function is to monitor conventional, non-addressable fire detection devices or status signals from other systems and seamlessly integrate them into the central addressable fire alarm control panel.
The module is designed to receive a change-of-state signal from conventional devices such as manual call points, heat detectors, or waterflow switches from the sprinkler system. It then converts this signal into a digital communication that is transmitted to the main control panel, identifying itself with a unique address to pinpoint the location and nature of the alarm or fault. Housed in a compact, robust, and often marine-grade enclosure resistant to vibration, corrosion, and humidity, it ensures reliable performance in harsh shipboard environments. By bridging conventional detection zones with modern intelligent systems, the input module allows for flexible system design, easier expansion, and comprehensive monitoring, enhancing overall vessel safety and compliance with maritime regulations.

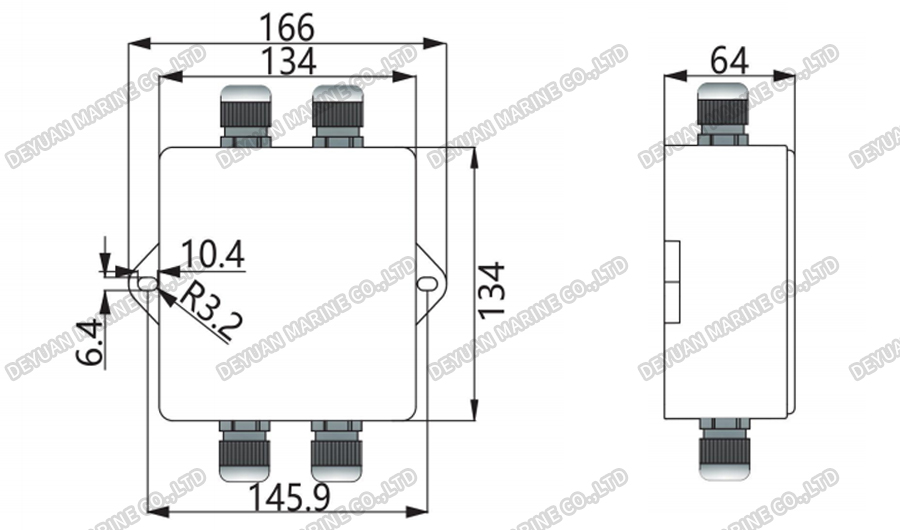

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
