Product Description

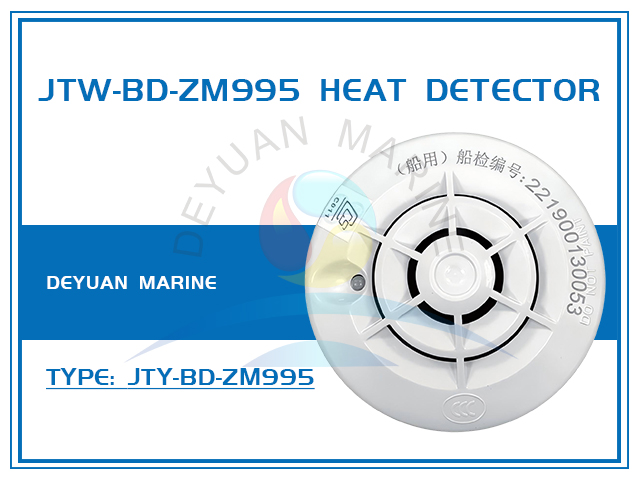

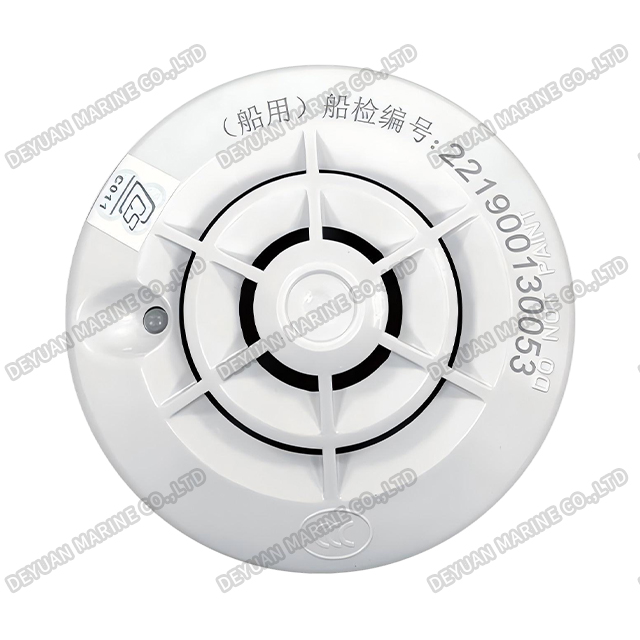

JTW-BD-ZM995 Heat Detector For Fire Alarm System
Product Introduction
Safeguard your vessel with our precision-engineered Marine Heat Detector, a critical component for reliable fire detection in challenging maritime environments. Designed specifically for areas where smoke detectors may be unsuitable—such as engine rooms, galleys, machinery spaces, and zones with high humidity, dust, or fumes—this detector provides robust and dependable thermal monitoring.
Built to withstand the harshest conditions at sea, the detector features a rugged, corrosion-resistant stainless steel or marine-grade aluminum enclosure, ensuring long-term durability against saltwater, vibration, and extreme temperature variations. It complies with major marine classification society standards (such as SOLAS, IMO, ABS, DNV, Lloyd's) and is certified for global maritime use.
Utilizing advanced rate-of-rise and fixed-temperature sensing technology, it triggers an immediate alarm when a rapid temperature increase is detected or when a preset high-temperature threshold is exceeded. This dual-sensing method ensures a fast response to actual fire conditions while minimizing false alarms from normal operational heat fluctuations.

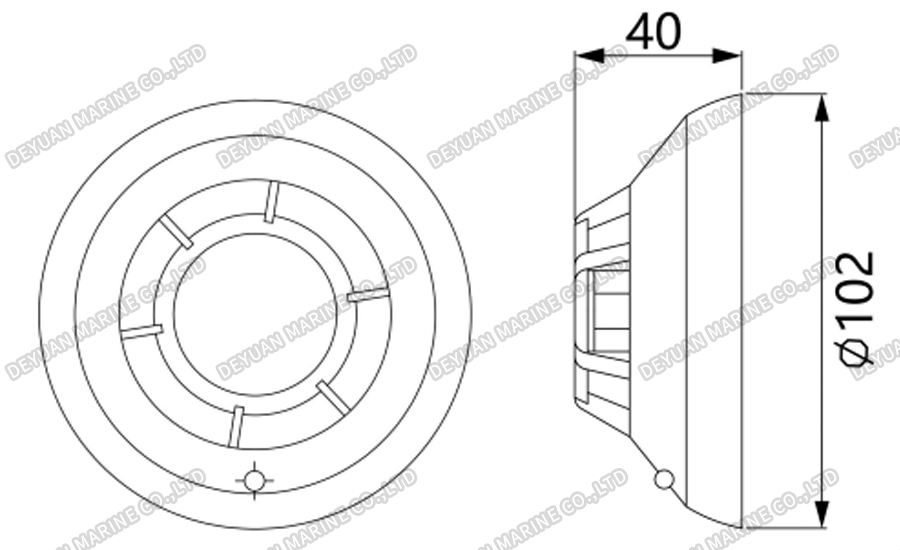

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Key features include
High Ingress Protection (IP) Rating for resistance to water and dust.
Easy manual testing and maintenance without recalibration.
Stable performance in high-airflow or ventilated spaces.
Compatibility with both conventional and addressable fire alarm systems.
Simple installation and integration into existing vessel safety networks.
Ideal for retrofit or newbuild projects, our Marine Heat Detector delivers unwavering performance where you need it most. Ensure compliance, enhance safety, and protect your crew and assets with a detector built for the sea.
