Product Description

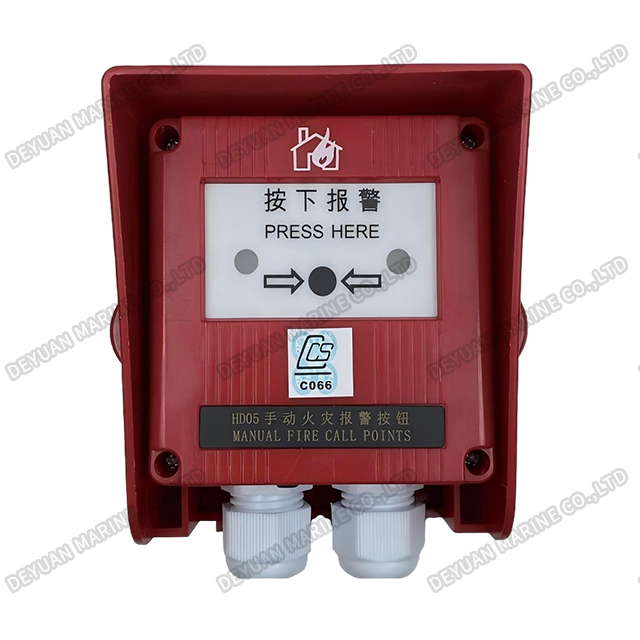

HD05FB Watertight Fire Call Point For Fire Alarm System
Product Introduction
The Marine Waterproof Manual Fire Alarm Call Point is a durable and reliable safety device designed for demanding shipboard environments. Engineered to comply with international maritime standards, including SOLAS and classification society rules, it provides a critical manual interface for initiating a fire alarm in an emergency.
Its core feature is a robust, waterproof (typically IP66 or higher rated) and corrosion-resistant enclosure that protects internal components from moisture, salt spray, and harsh weather conditions prevalent at sea. The device is activated by breaking a protective glass panel or pressing a sealed button, instantly sending a clear signal to the central fire alarm control panel. Finished in high-visibility red with clear markings, it ensures immediate recognition and intuitive operation by crew members. Suitable for installation in both external decks and internal wet areas, this call point guarantees dependable performance, enhancing overall vessel safety and ensuring regulatory compliance.

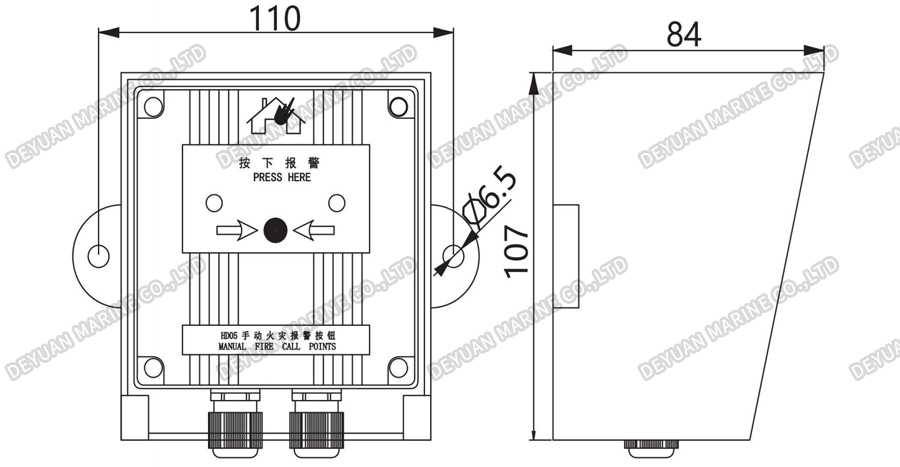

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
