Product Description

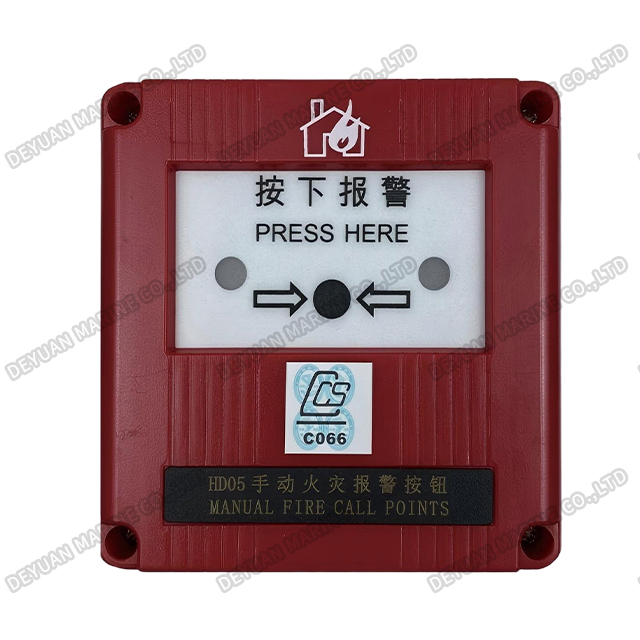

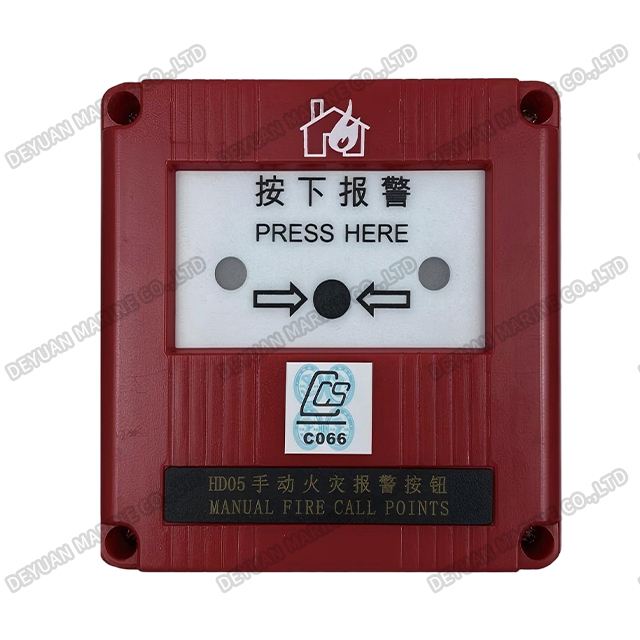

HD05B Manual Fire Call Point For Fire Alarm System
Product Introduction
The HD05B Manual Fire Call Point is a robust and reliable marine-grade device designed for manual initiation of a fire alarm on board ships and offshore installations. Engineered to withstand harsh maritime environments, it features a corrosion-resistant, waterproof (IP-rated) enclosure that ensures long-term durability against salt spray, humidity, and temperature variations.
The call point is activated by breaking the protective glass or pressing the sealed button, instantly sending a signal to the central fire alarm control panel. With high-visibility red housing and clear instructional labeling, it enables quick and intuitive operation in emergency situations. Compliant with international maritime standards such as SOLAS and classification society requirements, the HD05B is suitable for installation in corridors, machinery spaces, accommodation areas, and other key locations throughout the vessel. Its simple yet rugged design guarantees dependable performance, contributing to enhanced onboard safety and emergency response efficiency.

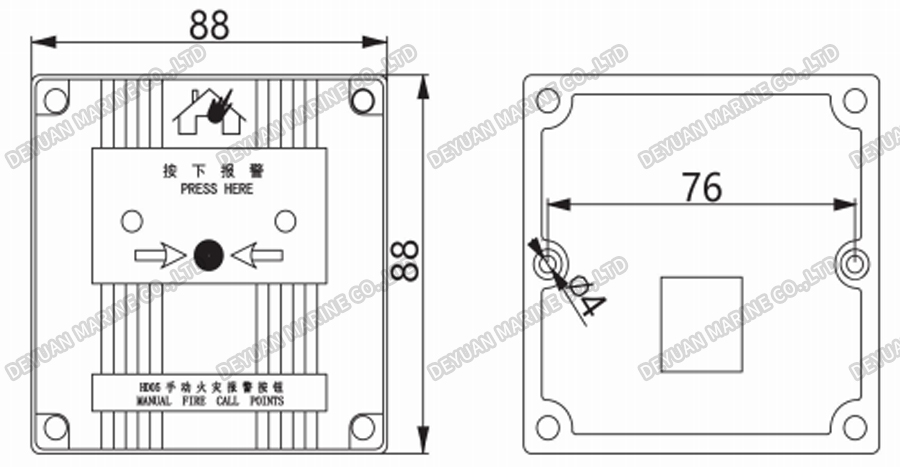

Drawing
Technical Data
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type
Fire Controller System Connection Addressable Type
