ISO13728 Panama Chock Deck Mounted Type A

Place of Origin: China
Brand: DEYUAN MARINE
Standard: ISO13728
Type: Panama chock,Type A
Installation: Bulwark mounted
Material: Cast Steel
SWL: 48~79T
Certificate:IACS certificate available
Surface: with anti-corrosion protective finish

Product Description

ISO13728 Panama Chock Deck Mounted Type A

Panama Chock deck mounted type A product description

Introduction of  ISO13728 Panama Chock

ISO13728 Panama Chock is a special type of hawse hole at a vessel's bow, it is designed and fabricated according to the mooring requirements set by Panama Canal and OCIMF requirements.

ISO Standard Chocks ISO13728 Panama Chock is made from carbon steel castings and can be certified by different  Classification Society like CCS, ABS, BV, NK, DNV, LR etc.

A wide range of sizes of ISO13728 Panama Chocks can be offered for option, and how to choose a panama chock will depend primarily on the size of the vessel and the diameter of the lines.

DEYUAN MARINE stock various types of deck mounted chocks which consist of


  • ISO13713 Deck Mounted Mooring Chocks Type A

  • ISO13729 Deck Mounted Closed Chock

  • JIS F2007-76 Deck Mounted Mooring Pipe

  • JIS F2017 Deck Mounted Panama Chock

  • JIS F2030 Deck Mounted Single Point Mooring Pipe

  • DIN81915  Deck Mounted Chock Type C

  • EU Type  Panama Bow chock Deck Mounted


type A Panama Chock for ships technical parameters

ISO13728 Panama Chock Deck Mounted Type A

Nominal size SWL Weight Dimensions(mm)
(mm) (kn) (t) (kg) L l1 l2 H H1 H2
310 471 48 257 310 708 688 260 639 541
360 687 70 286 360 760 740 260 640 543

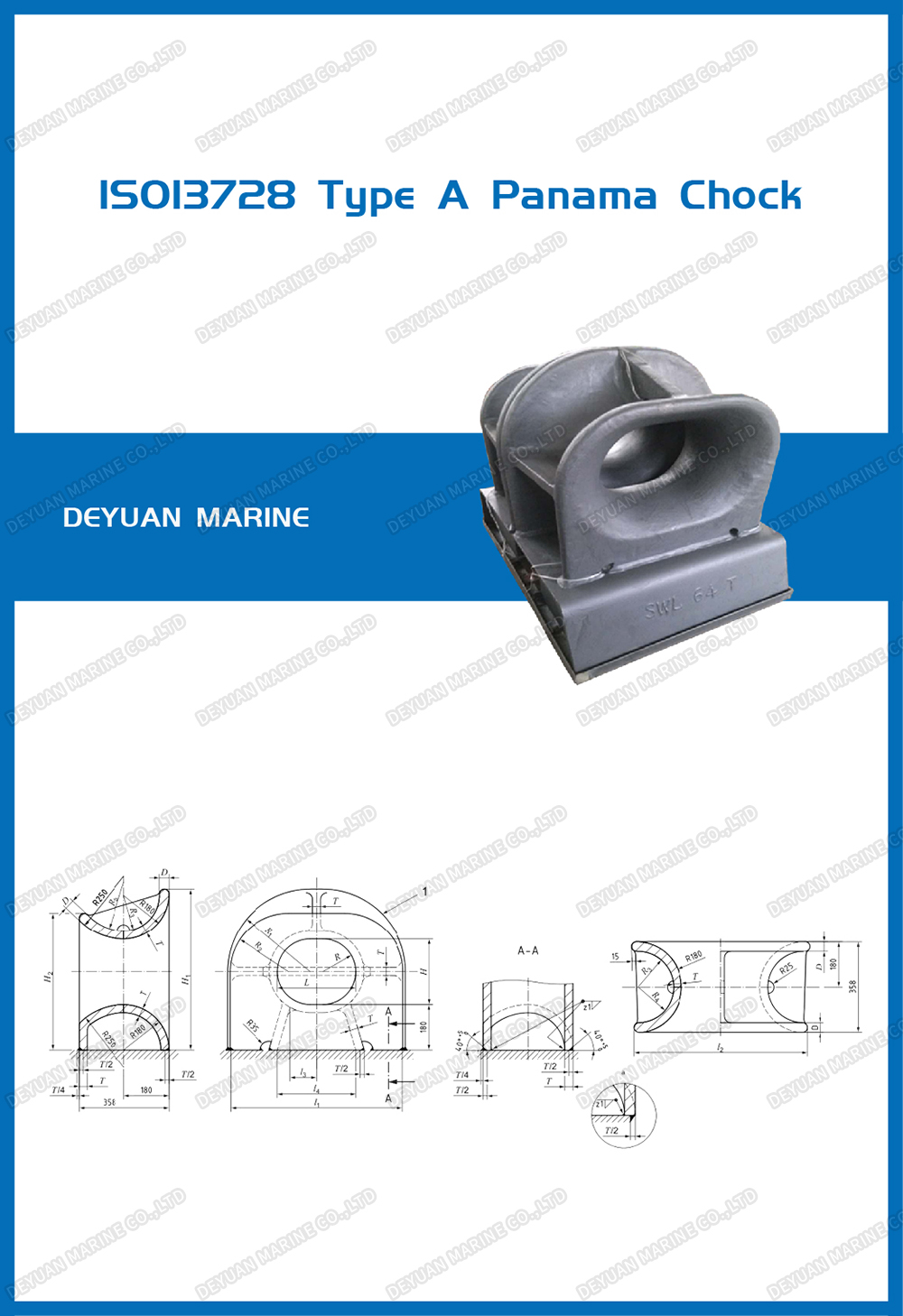

ISO13728 Panama Chock for ships
