Product Description

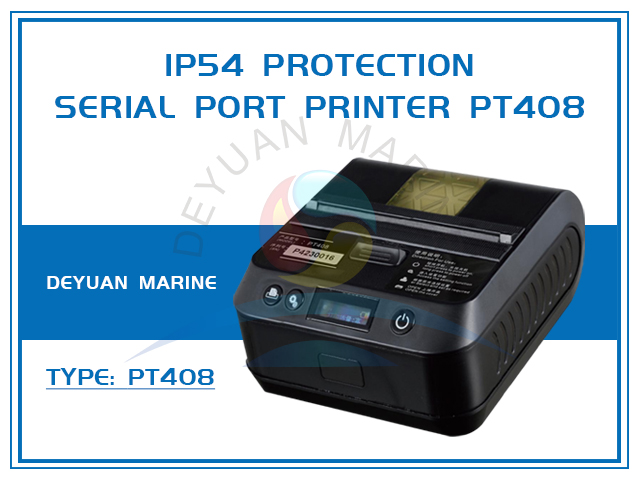

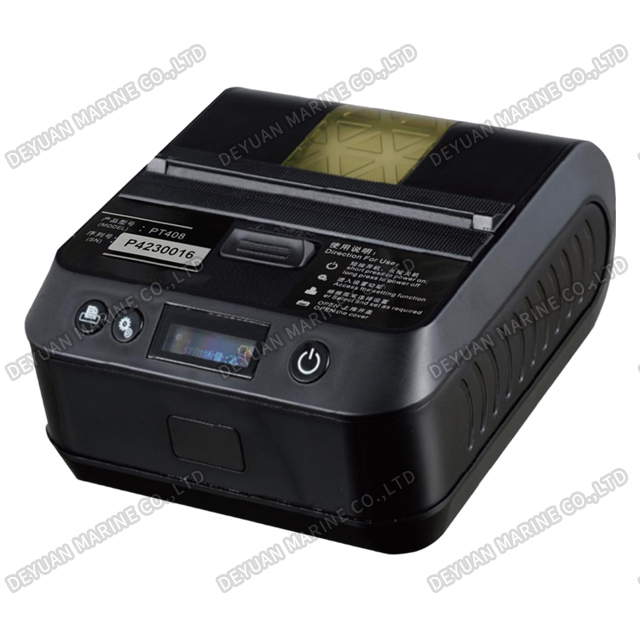

IP54 Protection Serial Port Printer PT408
Product introduction
The PT408 Serial Port Printer is a rugged, reliable data recording solution designed for critical maritime operations. Open the cover with one button,OLED working status display,IP54 waterproof and dust proof rating,1.2m（concrete floor）fall resistance.Engineered to withstand the demanding shipboard environment, it provides a dependable physical record of navigation, voyage, and system data directly from your bridge electronics. This dedicated serial printer ensures compliance with data logging requirements, offering verifiable hard copy backups of essential information for safety analysis, operational review, and regulatory documentation.
As a core component of a ship's data management system, the PT408 connects seamlessly to a wide range of navigation and automation equipment. It continuously receives and prints data streams—such as position fixes from GPS, AIS targets, depth soundings, or alarm events—delivering clear, timestamped records on durable paper. Its straightforward operation and robust design make it an indispensable tool for maintaining an accurate and permanent log, serving as a trusted fail-safe against purely digital record-keeping.
Technical Data
| PT408 Performance parameter | |
| ltem | Specification |
| Print Method | Thermal Line Dot Printing |
| Power Adapter | 12V,3A Adapter |
| Print Speed | 90 mm/s MAX |
| Effective Print Width | 72mm |
| Baud Rate Range | 4800～115200 |
| Paper Roll Diameter | 40mm MAX |
| Paper Width | 79.5±0.5mm |
| Paper Thickness | 0.055～0.13mm |
| Character Set | ASCII GB312-80 |
| Weight | 360g |
| Interface | RS232 |
| Protection | IP54 |

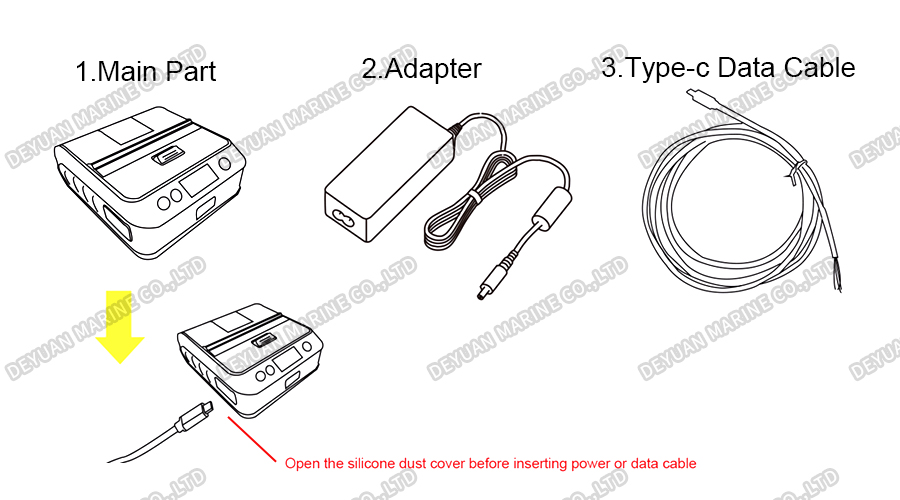

Accessory diagram
Installation dimensions
