Product Description

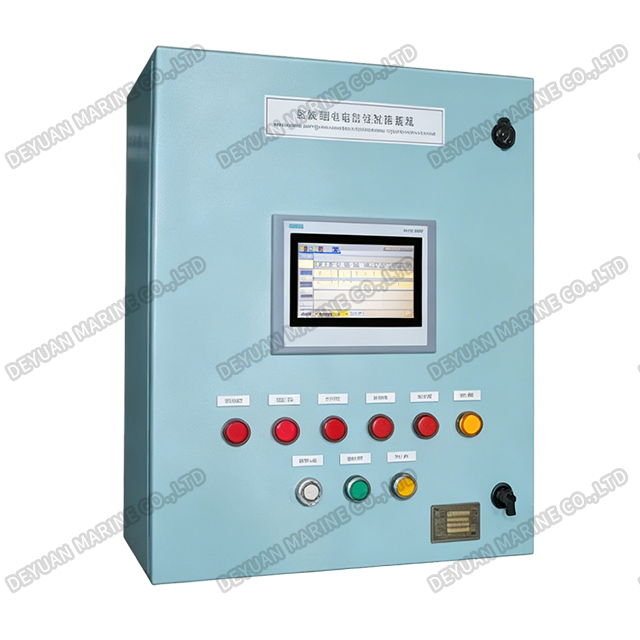

WQB Type Crankpin Oil Temp.Monitoring And Alarm Device
Product Introduction:

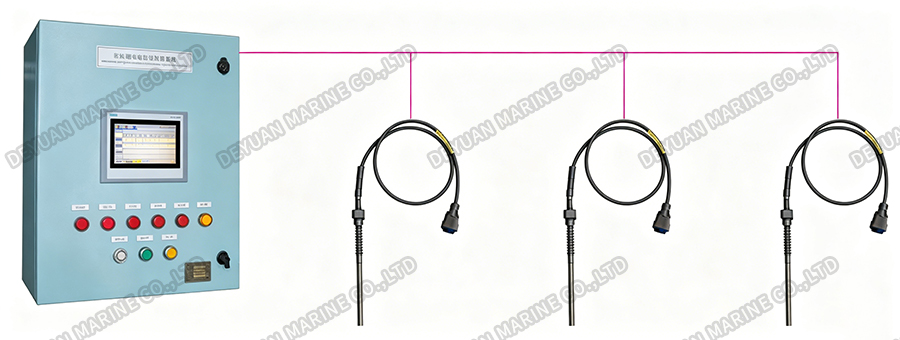

WQB type crankpin oil temperature monitoring and alarm device mainly consists of temperature sensor and alarm control box. The product design meets requirements of rules. It has the characteristics of reasonable configuration, high precision, good stability, safety and reliability etc. matching with PA, PC type diesel engine, the device can monitor real-time running temperature of crankpin, intelligent analysis and judgment of crankpin’s working condition, and alarm failure of each diesel cylinder timely. When emergent failure occurs, the device will send out stop signal to avoid accident.
Main Technical Specification:
| Power voltage | AC220V, DC24V (option) |
| Monitoring points | 8 (option) |
| Measuring accuracy | ±0.5%FS (0~200℃) |
| Alarm accuracy | ±1.0℃ |
| Protection class | IP44 (control panel) IP66 (sensor) |
| Installation type of control panel | wall mounting type |
| Ex. mark | Exia II CT6 |
| Working temperature | 0~70℃ |
| Contact capacity | AC220V 2A (SPST output) |
| Signal output | RS485 |
Main Functions：
*Real-time display temperature value of each channel
*Real-time display average temperature value of each channel
*Real-time display deviation value between temperature of each channel and average temperature value
*Alarm for temperature over-limit
*Alarm for temperature over upper limit stop
*Alarm for temperature deviation over-limit
*Alarm for temperature deviation over upper limit stop
*Alarm for sensor failure
