Product Description

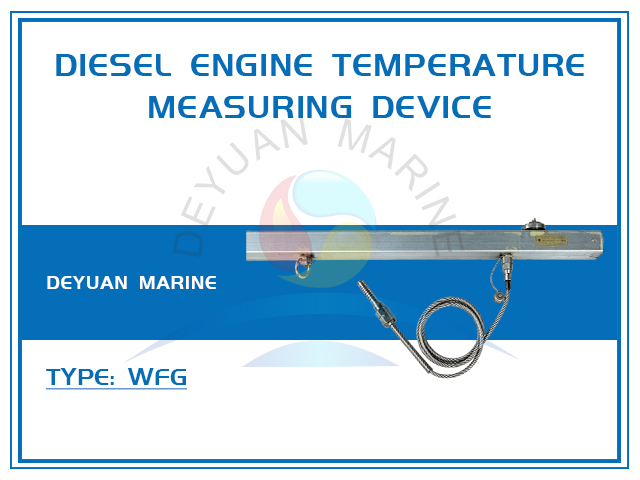

WFG Type Diesel Engine Temperature Measuring Device
Product Introduction:

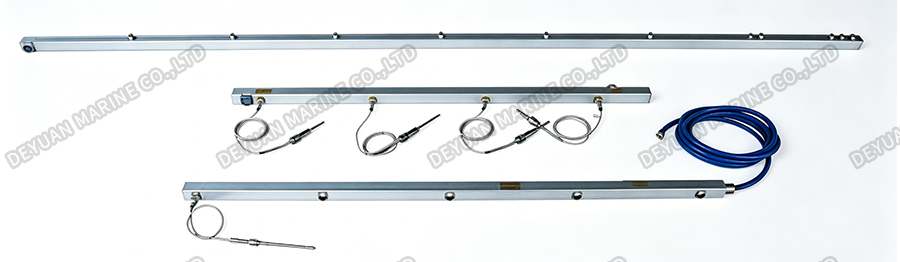

Diesel engine temperature measuring device consists of exhaust temperature square tube, exhaust temperature sensor, main bearing square tube, bearing temperature sensor and matched connection cables. It is used for temperature real-time monitoring of each exhaust pipe and inlet & outlet of supercharger of middle/ low speed diesel engine, and intensively transfer temperature signal of each cylinder and bearing to upper computer to monitor and diagnose running state of diesel engine.
Main Technical Specification:
| Product type | Exhaust temperature square tube | WFG-AP, WFG-BP |
| Bearing square tube | WFG-ZC | |
| Monitoring points | 1~50 | |
| Measuring accuracy | Bearing temperature sensor (Pt100) ±0.5%FS;Exhaust temperature sensor (K couple) | |
| Output signal of exhaust temperature square tube | mv voltage signal | |
| Output signal of bearing square tube | three-wire Pt100 resistance signal | |
| Working temperature | 5~70℃ | |
| Protection class | IP65 | |
| Number of connector port | confirmed according to model of diesel engine. | |
| Exhaust temperature sensor | Model | WZPK-23RD-C |
| Element | K couple | |
| Measuring range | 0~800℃ | |
| Measuring accuracy | ±6℃ | |
| Output signal | mv voltage signal | |
| Protection class | IP5 | |
| Bearing temperature sensor | Model | WZPK-23RZ-C |
| Element | three-wire Pt100 | |
| Measuring range | 0~300℃ | |
| Measuring accuracy | ±0.5%F.S | |
| Output signal | Pt100 resistance signal | |
| Protection class | IP56 | |
| Installation connection | M18X1.5, G1/2”, G3/4” | |
