Product Description
QBNC Type Fixed Hydrocarbon Gas Detection System
Product Introduction:

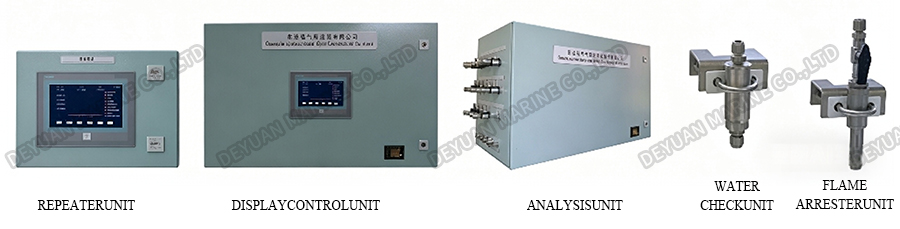

According to IMO MSC. 98 (73) resolution of the international rules on fire control safety system, MSC. 292 (87) resolution amendments to the international rules on fire control safety system, MSC. 1 / Circ. 1370 the stationary hydrocarbon gas detection system design, construction and test guide, designed and developed QBNC pump suction type gas monitoring alarm system products. QBNC Fixed Hydrocarbon Gas Detection System, mainly used in the ship's ballast tanks, double hull empty tank and cargo hold double bottom space of the adjacent fore peak tank and cargo (including the adjacent bulkhead deck below any other tank and space), the hydrogen gas concentration measurement, realize the danger zone of continuous pumping gas and realtime analysis and monitoring alarm device. QBNC Fixed Hydrocarbon Gas Detection System is mainly composed of analysis unit, display control unit，repeater unit.

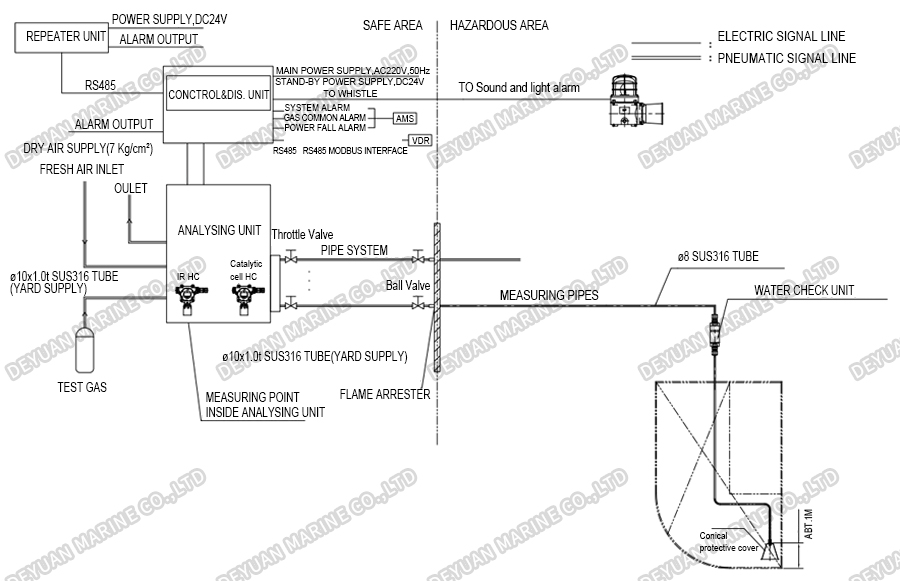

General Diagram:
