Marine Embarkation Rope Ladder SOLAS1974 Type B Wooden Steps

Brand: Deyuan Marine
Standards: SOLAS1974,standard ISO/R799-1968 and JISF 2615-1982
Approval: CCS&EC
Application: Used for pilot to embark a ship or go aboard
Material: Willow
Long board: 1800*115*28mm
Orifice: φ25mm

Product Description

Marine Embarkation Rope Ladders

Embarkation rope ladder product description

Introduction of Marine Embarkation Ladder

Embarkation ladder is the rope ladder used for embarkation and disembarkation during the emergency case and for crew's getting in and out the vessel in general situation. The steps of the ladder are made of hardwood except the lower four steps are made of rubber.

DEYUAN MARINE offer a wide range of wooden embarkation rope ladder and aluminium embarkation ladder to meet different requirements, if you are looking for any ship’s rope ladders, please donot hesitate to contact us for a brochure or more specific details of the rope ladders.

Embarkation Ladder Features and Benefits

* Manufacture according to the standard of 5489、CB/T428

* With MED & CCS approved certificate

* Steps of each ladder made of finest hardwood except for the last 4 rubber steps

* Each steps of the ladder would be supported by side ropes

* Mildew-resistant 20mm dia. manila side rope with breaking strength of at least 24kn

* Wooden Steps 500mm x 115mm x 25mm.

* Rubber Steps 500mm x 115mm x 28mm

* Typically used for embarkation and disembarkation during the emergency case

Embarkation rope ladder technical parameters

Marine Embarkation Ladder Parameters

Number of steps Length (L) Weight (kg)
mm Aluminium Wooden
3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 3300 56.30 8100
35 10850 63.91 93.36
40 I24OO 71.52 105.72
45 13950 79.13 118.08
SO 155OO 86.74 130.44
55 17000 94.35 142.86
60 185OO 101.96 155.16
65 20000 109.57 167.52
70 21500 117.18 179.88
n+5 L+1500 +7.61 +12.36

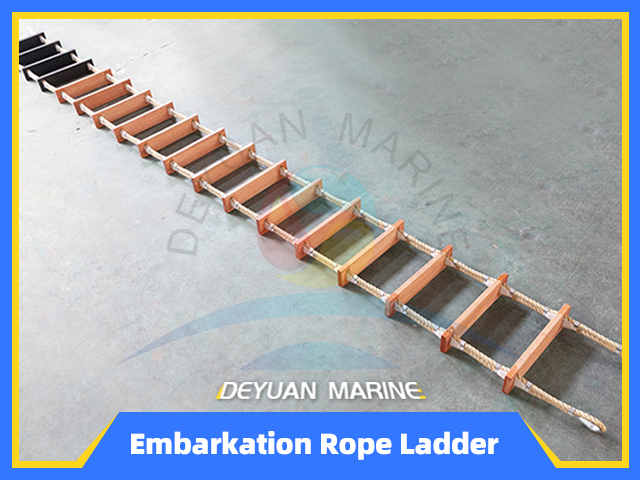

Type B Embarkation rope ladder With Wooden Steps
