Product Description

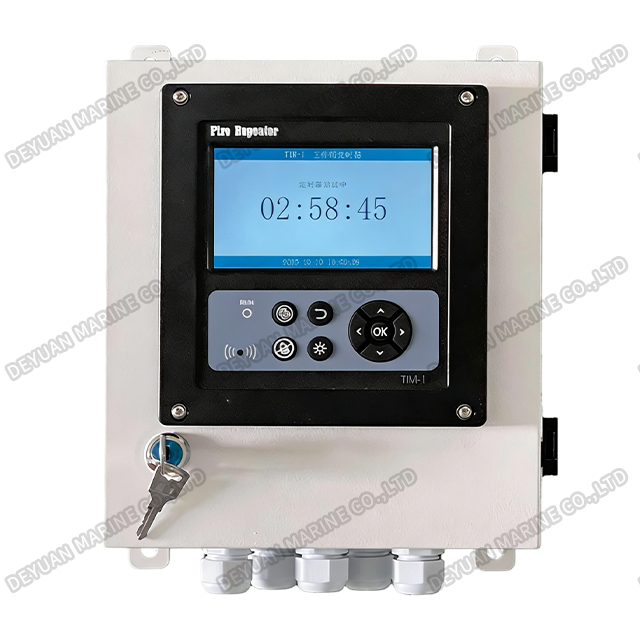

TIM-1 Wall Type Workroom Timer For Fire Alarm System
Product Introduction:
The TIM-1 Wall Type Workroom Timer is a dedicated marine safety device designed for installation in high-risk shipboard areas such as workshops, paint lockers, and machinery spaces. Its core function is to provide a mandatory, controlled evacuation period before the automatic release of fixed fire-extinguishing systems like CO2 or foam. Upon system activation, the TIM-1 initiates a clear and unmistakable countdown, utilizing both audible alarms and highly visible visual indicators to alert all personnel to evacuate immediately.
Engineered for the demanding marine environment, the unit features a rugged, corrosion-resistant wall-mounted enclosure. It complies with key international maritime safety standards, including SOLAS regulations, ensuring operational reliability and regulatory compliance. By guaranteeing a safe evacuation window, the TIM-1 crucially prevents personnel from being exposed to dangerous extinguishing agents, thereby protecting lives while enabling effective fire suppression.

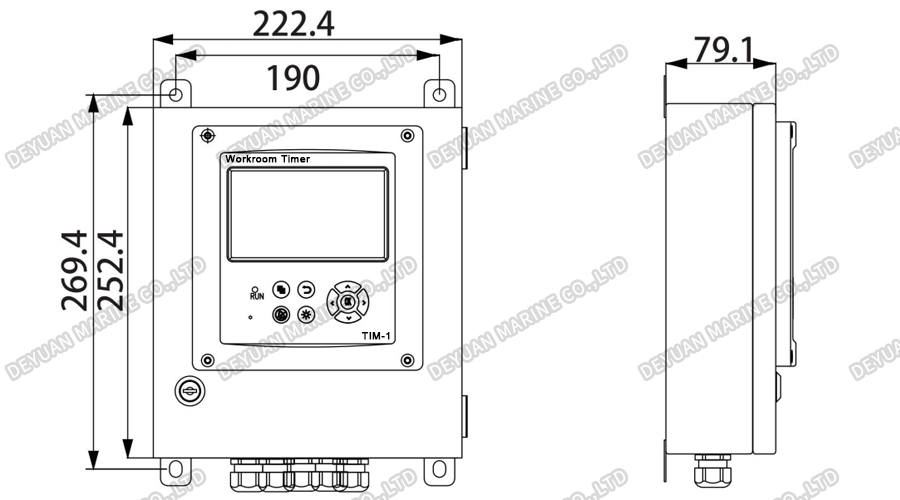

Drawing:
Technical Data:
| Main Power | AC220V±10% |
| Spare Power | DC24V（+30%~-25%） |
| Output current and voltage | 1A/24V |
| Tactic Power Consumption | 220V 100mA |
| Environment Temperature | -10℃~+55℃ |
| Environment Humidity | 95%RH |
| With measures against mildew.salt fog and humidity. With measures against vibration,impact and incline. | |
Fire Alarm System Addressable Type:
Fire Controller System Connection Addressable Type:
