Ship Deck Combination Azimuth Thruster With CCS Approval

Origin: Made in China
Type: Azimuth Thruster
Blade: 4
Power: Less than 2000HP
Speed: 1800-2200rpm
Propeller dia.: 860-2050mm
Warranty: 1 Year
Delivery time: 1-2 month
Certificate:CCS, BV, ABS, DNV, GL etc
Brand: Deyuan Marine

Product Description

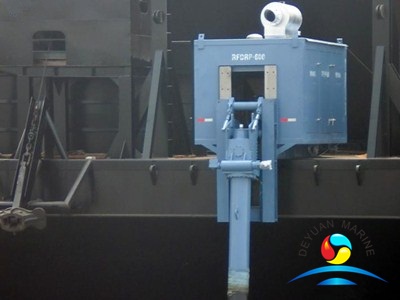

Ship Deck Combination Azimuth Thruster With CCS Approval:

Deck combination azimuth thruster is a kind of  marine power propulsion which combined azimuth thruster and diesel engine. They have the advantages of compact structure, high mobility, convenient install and others. The whole set can be installed directly on the deck base. The set is hooded in the container. The vertical height is adjusted by mechanic equipments or hydraulic equipments.
Model Power Rating  Speed Rating  Dia of propeller  Clutch complete Matching
(HP) (r/min) (mm) Diesel Engine
RFDRP120 120 2200 860 HCL100F 6BT5.9-M120
RFDRP300 300 1800 1080 HCL250F NT855-M300/WD615.64C
RFDRP600 600 1800 1300 HCL320F KTA19-M600/8 M26.2
RFDRP900 900 1800 1680 HCL600F KTA38-M900/12 M26.2
RFDRP1200 1200 1800 1750 HCL800F KTA38-M1200/12 M26.2
RFDRP1600 1600 1800 1850 HCL800F KTA50-M2
RFDRP2000 2000 1800 2050 HCL1000F KTA50-M2
