Product Description

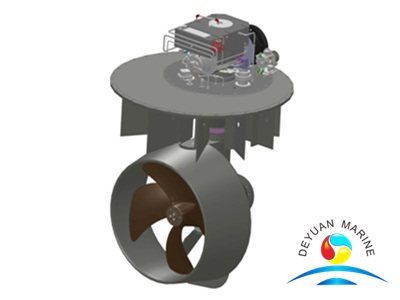

L-Drive Azimuth Ship Thruster
| Type | Input Power Max. (KW) | Input Speed Rated. (rpm) | Input Torque Max. (N.m) | Propeller Dia. Max.￠ (mm) | Reduction Ratio | Weight (kg) |
| SRP45 | 100 | 2500 | 450 | 800 | 2.5 | 190 |
| SRP85 | 210 | 2350 | 850 | 950 | 2.68 | 400 |
| SRP138 | 260 | 2000 | 1380 | 1100 | 3.01 | 1200 |
| SRP180A | 340 | 1800 | 1800 | 1150 | 3.46 | 1450 |
| SRP180B | 280 | 1500 | 2.88 | |||
| SRP180C | 180 | 1000 | 2.526 | |||
| SRP226 | 350 | 1800 | 2260 | 1350 | 3.34 | 2000 |
| SRP280 | 480 | 2800 | 1550 | 3.96 | 2100 | |
| SRP310A | 580 | 3070 | 1550 | 3.718 | 2500 | |
| SRP310B | 1500 | 3800 | 3.002 | 2600 | ||
| SRP330 | 620 | 1800 | 3300 | 1600 | 4.04 | 2800 |
| SRP330B | 620 | 1500 | 4100 | 3.26 | ||
| SRP428A | 735 | 1800 | 4280 | 1600 | 4.35 | 4500 |
| SRP428B | 1500 | 5220 | 3.671 | |||
| SRP428C | 1000 | 7140 | 2.769 | |||
| SRP550 | 920 | 1800 | 5423 | 1800 | 5.059 | 6000 |
| SRP1000 | 1000 | 9762 | 2.804 | |||
| SRP1150 | 1103 | 11500 | 1800 | 2.775 | 7000 | |
| SRP1150A | 750 | 15280 | 2.102 | |||
| SRP1450 | 1324 | 1000 | 14800 | 2100 | 3.257 | 17000 |
| SRP1850 | 750 | 18500 | 2.44 | 18000 | ||
| SRP1850B | 825 | 17900 | 2.68 | |||
| SRP1850C | 900 | 16200 | 2.93 | |||
| SRP2000A | 1545 | 525 | 30000 | 2200 | 1.925 | 20000 |
| SRP2000 | 1471 | 750 | 20000 | 2.74 | ||
| SRP2000B | 825 | 18800 | 3.01 | |||
| SRP2000C | 900 | 17500 | 3.257 | |||
| SRP2000D | 1000 | 16000 | 3.66 | |||
| SRP2500A | 1912 | 750 | 31200 | 2450 | 3.32 | 24000 |
| SRP2500B | 825 | 28360 | 3.453 | |||
| SRP2500C | 900 | 26000 | 3.983 | |||
| SRP2500D | 1000 | 26000 | 4.42 | |||
| SRP3000A | 2206 | 750 | 31200 | 2650 | 3.32 | 28000 |
| SRP3000B | 825 | 28360 | 3.453 | |||
| SRP3000C | 900 | 26000 | 3.983 | |||
| SRP3000D | 1000 | 26000 | 4.424 | |||
| SRP4000A | 3000 | 750 | 42000 | 3200 | 4.41 | 53000 |
| SRP4000B | 825 | 38200 | 4.85 | |||
| SRP4000C | 900 | 35000 | 5.29 | |||
| SRP4000D | 1000 | 32000 | 5.88 |
