Product Description

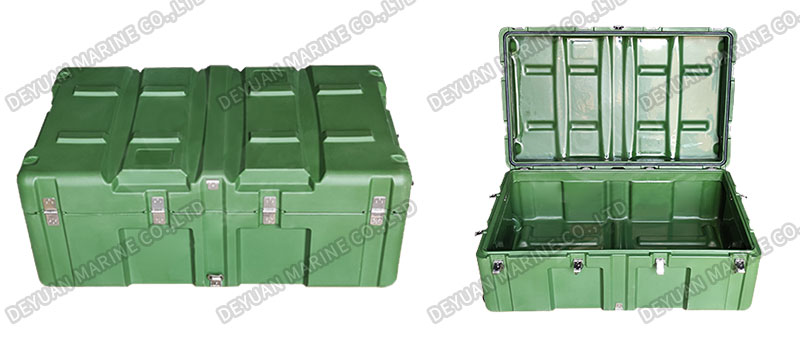

RS864A Medium Plastic Rotational Casting Airdrop Box
Feature
- Meet military standards
- Airdrop eight 15 meters
- Stackable
-rubber sealed loop
-Sturdy long shaft
RS864A is a series of rotomolding airdrop boxes. The standard configuration does not come with a sponge, and pre-cut sponges, customized sponges, etc, also can be customized to install rods and casters.
IP protection level test:
ASTM IP65 (IP waterproof and dustproof protection level)
Dust spraying without dust entry; The box is immersed in water, and there is no water infiltration within the standard water pressure time
Low temperature drop test:
FED-STD-101C (Federal Test Method Low Temperature Drop Standard)
The box is filled with a 14KG heavy object, with a height of 0.64m, and the edges and corners can freely fall 26 times in all directions
Vibration/Rain Test:
ASTMB4169, DC-18 (Federal Test Method Vibration Test Standard)
120 minutes of 5-50 Hz violent vibration, 3 axial directions, 40 minutes per axis, with a rainfall of 100mm per hour, and 40 minutes of rain on 6 surfaces respectively
Drop hammer impact test:
ATA300 (Air Transport Association standard drop hammer impact)
3.2 cm in diameter, hemispherical at the top, weighing 6KG, with a high impact of 0.5m
Data Sheet
| External Dimension | Internal Size | Depth | Weight | Ingress Protection | ||
| Cover depth | Inside Depth | |||||
| 1000*600*400mm | 910*530*330mm | 80mm | 250mm | 15KG | IP67 | |
| (39.4"x23.6"x15.7") | (35.8"x20.9"x13") | |||||
| Material | Processing | Color | Castor Wheel | Handle Ring | Lock Catch | Stackable |
| LLDPE | Rotational moulding | Army green/Black | with | 2个 | 8个 | Yes |
More models:
| Series - Injection Molded Plastic Small and Medium Safety Cases IP67 | |||||||
| Model | Outline(mm) | Inner(mm) | Cover/Box Depth(mm) | Color | Net Weight(kg) | Tie Bar | Wheel |
| M2100 | 395*299*148 | 334*237*132 | 32+100 | B/Y/G | 1.78 | N | N |
| M2200 | 413*328*168 | 381*267*152 | 48+104 | B/Y | 2.3 | N | N |
| M2360 | 464*358*208 | 432*297*193 | 48+145 | B/Y | 2.86 | N | N |
| M2400 | 493*395*185 | 462*334*170 | 48+122 | B/Y | 2.916 | N | N |
| M2500 | 587*358*221 | 525*297*192 | 48+144 | B/Y | 4.95 | Y | 2 |
| M2608 | 570*418*228 | 508*356*220 | 48+172 | B/G | 4 | N | N |
| M2620 | 570*418*285 | 508*356*254 | 48+206 | B/G | 5.2 | Y | 2 |
| M2720 | 624*498*285 | 563*437*254 | 48+206 | B | 7.5 | Y | 2 |
| M2750 | 624*498*353 | 563*437*323 | 48+275 | B | 8 | Y | 2 |
| M2950 | 802*522*298 | 741*461*267 | 78*189 | B | 8.9 | Y | 2 |
| RS Series Rotomolding Plastic Air Drop Cases | |||||||
| Model | Outline(mm) | Inner(mm) | Net Weight(kg) | Volume（L) | Wheel | Color | IP Grade |
| RS820 | 800*530*380 | 700*445*350 | 15 | 100 | Y | G | IP65 |
| RS830 | 800*600*560 | 730*530*450 | 18 | 170 | N | G | IP65 |
| RS860 | 961*697*398 | 871*615*355 | 20 | 190 | Y | G | IP65 |
| RS870 | 1100*530*360 | 1020*450*340 | 18 | 150 | Y | G | IP65 |
| RS880A | 1200*800*620 | 1100*730*600 | 33 | 480 | N | G | IP65 |
| RS880B | 1200*800*700 | 1100*730*680 | 37 | 550 | N | G | IP65 |
| RS890 | 2120*1070*625 | 2000*960*600 | 65 | 1150 | Y | G | IP65 |
| RUSeries Rotomolding Plastic Portable Shock-absorbing Rack Cases IP65 | |||||||
| Model | Outline(mm) | 19" Rack Installation Size | Cover/Box Depth(mm) | Shock-absorbing | Wheel | Tie Bar | Color |
| RU040 | 760*621*364 | 181*483*450 | 100+560 | 8/None | 2/4 | 4 | G |
| RU060 | 860*592*446 | 270.5*483*600 | 90+680 | 8/None | 2/4 | 4 | G |
| RU080 | 860*592*535 | 359.5*483*600 | 90+680 | 8/None | 2/4 | 4 | G |
| RU110 | 850*621*675 | 493*483*550 | 100+650 | 8/None | 2/4 | 4 | G |
