Product Description

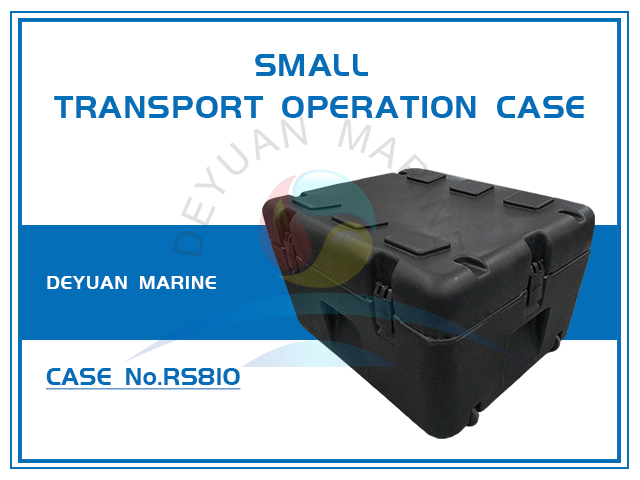

RS810 Small Equipment Transport Operation Case
Feature
1. The exterior of the small airdrop box RS810 is designed with reinforcing ribs and grooves, and multiple boxes can be stacked.
2. The design of hidden casters and back plate pull rod is both practical and beautiful. No matter how many heavy objects are in the box, it can be dragged and used at will. The maximum load capacity of the box is 3000KG.
3. The inside of the box has a smooth surface, and the outside of the box has a frosted surface. The colors of the small airdrop box RS810 that have been molded are army green and black. If your demand is relatively large, we can customize the color according to your requirements. Previously Customized colors include pattern camouflage and navy blue, etc. Our regular colors are black, army green, yellow and orange.
Testing Report
1. MIL-STD-810F 512.4 (Federal Test Standard Water Immersion Test)
2. MIL-STD-810F 514.5 (U.S. Federal Test Method Vibration Test Standard)
3. FED-STD-101C (U.S. Federal Test Method Low Temperature Drop Standard)
4. ATA300 (Air Transport Association standard drop hammer impact)
5. ASTMIP65 (IP waterproof and dustproof protection level)
6. ASTMB4169.DC-18 (American Society for Testing and Materials rain test)
7. STANAG4280 (NATO waterproof and moisture-proof standard agreement)
More models:
| Series - Injection Molded Plastic Small and Medium Safety Cases IP67 | |||||||
| Model | Outline(mm) | Inner(mm) | Cover/Box Depth(mm) | Color | Net Weight(kg) | Tie Bar | Wheel |
| M2100 | 395*299*148 | 334*237*132 | 32+100 | B/Y/G | 1.78 | N | N |
| M2200 | 413*328*168 | 381*267*152 | 48+104 | B/Y | 2.3 | N | N |
| M2360 | 464*358*208 | 432*297*193 | 48+145 | B/Y | 2.86 | N | N |
| M2400 | 493*395*185 | 462*334*170 | 48+122 | B/Y | 2.916 | N | N |
| M2500 | 587*358*221 | 525*297*192 | 48+144 | B/Y | 4.95 | Y | 2 |
| M2608 | 570*418*228 | 508*356*220 | 48+172 | B/G | 4 | N | N |
| M2620 | 570*418*285 | 508*356*254 | 48+206 | B/G | 5.2 | Y | 2 |
| M2720 | 624*498*285 | 563*437*254 | 48+206 | B | 7.5 | Y | 2 |
| M2750 | 624*498*353 | 563*437*323 | 48+275 | B | 8 | Y | 2 |
| M2950 | 802*522*298 | 741*461*267 | 78*189 | B | 8.9 | Y | 2 |
| RS Series Rotomolding Plastic Air Drop Cases | |||||||
| Model | Outline(mm) | Inner(mm) | Net Weight(kg) | Volume（L) | Wheel | Color | IP Grade |
| RS820 | 800*530*380 | 700*445*350 | 15 | 100 | Y | G | IP65 |
| RS830 | 800*600*560 | 730*530*450 | 18 | 170 | N | G | IP65 |
| RS860 | 961*697*398 | 871*615*355 | 20 | 190 | Y | G | IP65 |
| RS870 | 1100*530*360 | 1020*450*340 | 18 | 150 | Y | G | IP65 |
| RS880A | 1200*800*620 | 1100*730*600 | 33 | 480 | N | G | IP65 |
| RS880B | 1200*800*700 | 1100*730*680 | 37 | 550 | N | G | IP65 |
| RS890 | 2120*1070*625 | 2000*960*600 | 65 | 1150 | Y | G | IP65 |
| RUSeries Rotomolding Plastic Portable Shock-absorbing Rack Cases IP65 | |||||||
| Model | Outline(mm) | 19" Rack Installation Size | Cover/Box Depth(mm) | Shock-absorbing | Wheel | Tie Bar | Color |
| RU040 | 760*621*364 | 181*483*450 | 100+560 | 8/None | 2/4 | 4 | G |
| RU060 | 860*592*446 | 270.5*483*600 | 90+680 | 8/None | 2/4 | 4 | G |
| RU080 | 860*592*535 | 359.5*483*600 | 90+680 | 8/None | 2/4 | 4 | G |
| RU110 | 850*621*675 | 493*483*550 | 100+650 | 8/None | 2/4 | 4 | G |
