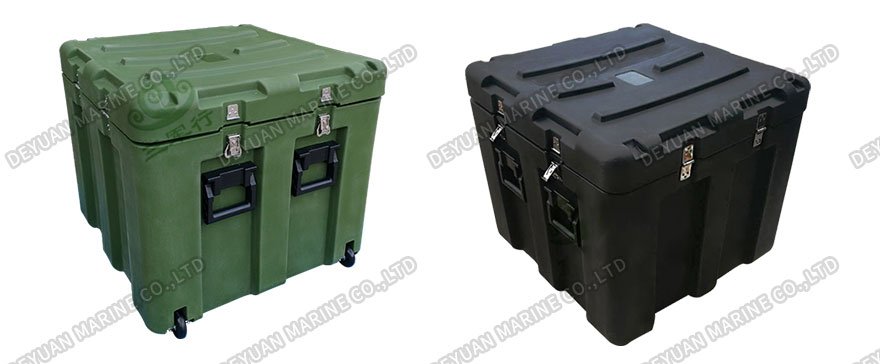

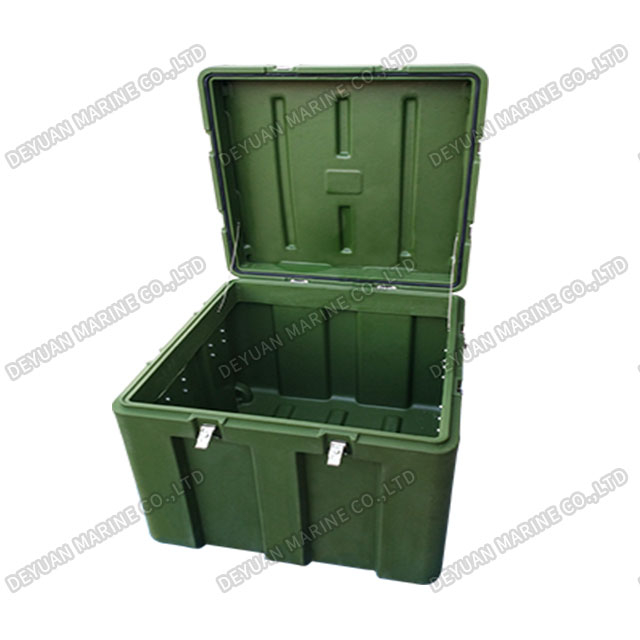

RS840 Medium-sized Airdrop Rotomolding Transport Box

RS840 Medium-sized Airdrop Rotomolding Transport Box

Feature

- Meet military standards

- Airdrop height 15 meters

- Stackable

-rubber sealed loop

-Sturdy long shaft

RS840 is a series of rotomolding airdrop boxes. The standard configuration does not come with a sponge, and pre-cut sponges, customized sponges, etc. can be configured separately.

We currently have 4 series of products: injection molding boxes, 19-inch rack boxes, rotational molding boxes and cold storage boxes.

Testing Report

1. MIL-STD-810F 512.4 (Federal Test Standard Immersion Test)

2. MIL-STD-810F 514.5 (Federal Test Method Vibration Test Standard)

3. FED-STD-101C (Federal Test Method Low Temperature Drop Standard)

4. ATA300 (Air Transport Association Standard Drop Hammer Impact)

5. ASTMIP65 (IP waterproof and dustproof protection level)

6. ASTMB4169.DC-18 (American Society for Testing and Materials Rain Test)

7. STANAG4280

IP protection level test:

ASTM IP65 (IP waterproof and dustproof protection level)

Dust spraying without dust entry; The box is immersed in water, and there is no water infiltration within the standard water pressure time

Low temperature drop test:

FED-STD-101C (Federal Test Method Low Temperature Drop Standard)

The box is filled with a 14KG heavy object, with a height of 0.64m, and the edges and corners can freely fall 26 times in all directions

Vibration/Rain Test:

ASTMB4169, DC-18 (Federal Test Method Vibration Test Standard)

120 minutes of 5-50 Hz violent vibration, 3 axial directions, 40 minutes per axis, with a rainfall of 100mm per hour, and 40 minutes of rain on 6 surfaces respectively

Drop hammer impact test:

ATA300 (Air Transport Association standard drop hammer impact)

3.2 cm in diameter, hemispherical at the top, weighing 6KG, with a high impact of 0.5m

Data Sheet
