Product Description

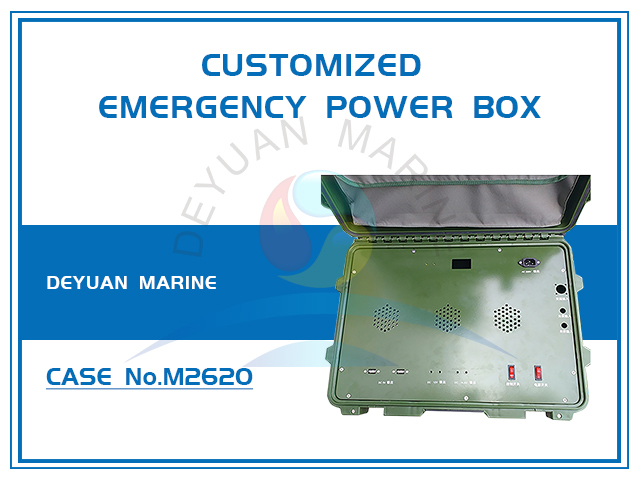

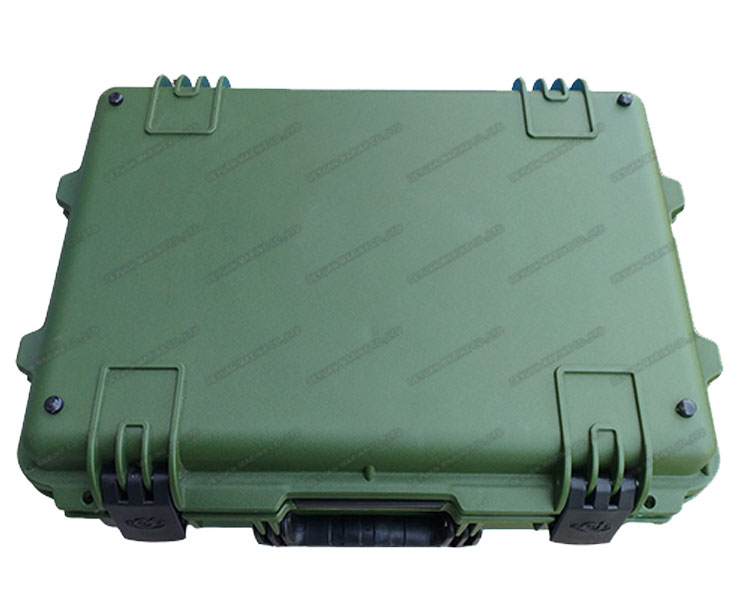

M2620 Customized Emergency Power Box
Recently one of our customers order one lot of emergency power box with base of M620 cases.
Data Sheet:
| Outline | Inner Size | Inner Depth | Weight（kg） | IP Grade | ||
| Cover | Body | |||||
| 570*418*285 mm | 508*356*254 mm | 48 mm | 206 mm | 5.2 | IP67 | |
| (22.4"x16.5"x11.2") | (20"x14"x10") | (1.9") | (8.1") | |||
| Material | Process | Color | Latch | Tie Rod | Air-valve | Ambient |
| LLDPE | Injection molding | Customizable | 2 | with | Auto | -40°C~90°C |
M2620 Features:
-The box bears 3 tons
- Silent spring lock, can be pressed more than 100,000 times
- Back-type waterproof sealing ring, resistant to low temperature minus 50 degrees Celsius
- Overall long axis design, firm and not overturned
-The handle is equipped with American aviation duralumin shaft, which will never rust
- Automatic waterproof and breathable valve, polymer filter automatic pressure relief, waterproof pressure 21 Pa, no water seepage for 1 meter and a half hours underwater
-Soft bag design handle
- Two strap/padlock holes
-Extended pull rod, more ergonomic

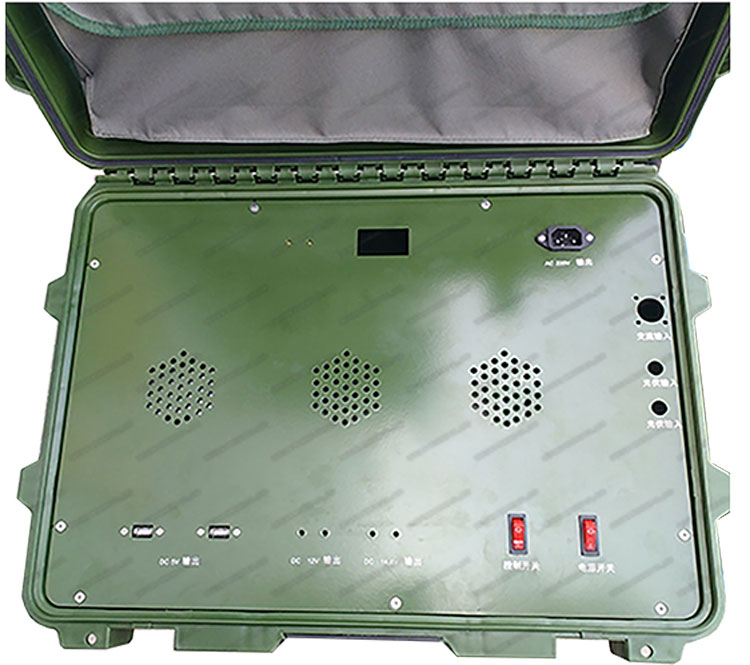

- Metal panels and electronic displays can be installed in the box
Certificates and Tests:
*MIL-STD-810F 512.4 (Federal Test Standard Water Immersion Test).
*MIL-STD-810F 514.5 (US Federal Test Method Vibration Test Standard).
*FED-STD-101C (U.S. Federal Test Method Low Temperature Drop Standard).
*ATA300 (Air Transport Association Standard Drop Impact).
*ASTMIP67 (IP waterproof and dustproof protection level).
*ASTMB4169.DC-18 (American Society for Testing and Materials rain test).
*STANAG4280 (NATO Water and Moisture Standard Agreement).
