Light Plastic Foldable Table & Chair

Light Plastic Foldable Table & Chair

The relevant technical parameters of the field desk, on the basis of the old field desk, have redesigned and improved the appearance structure of the 2020 new field desk, which makes the desk and chair more convenient and flexible to use while reducing weight , with shock absorption, impact resistance, high and low temperature resistance and deformation resistance, suitable for harsh outdoor transportation environments.

Feature

1. Outer box material: modified LLDPE, bearing 3 tons.

2. Contains 12 stainless steel custom metal locks.

3. The patented design plastic legs can be folded into the desktop design, anti-rollover, anti-collapse, durable leather, no large area of metal parts, suitable for low temperature environment.

4. There are two types of desktop placement, one support leg on the left and one side or two support legs on one side to meet various environmental requirements.

5. 2 sets of wide-handle reinforced spring plastic handle design (1 set each on the left and right), which is convenient for transportation and lifting after the desk is folded into a box.

6. The bottom of the desk body is equipped with two patented one-way pulleys, which can be dragged on the ground after the desk is folded into a box, which greatly enhances the practicality.

7. The rib design formed at one time on the side provides a safe stacking method, and the stacking of multiple boxes will not slip.

8. The sides and corners of the table body are strengthened and thickened, which provides strong impact protection for the desk.

9. Compared with similar products, it is light in weight, compact in structure, easy to install and place internal equipment.

10. The protection grade is IP65, and the return-shaped sealing ring is firmly attached to the cover, which is sealed and waterproof.

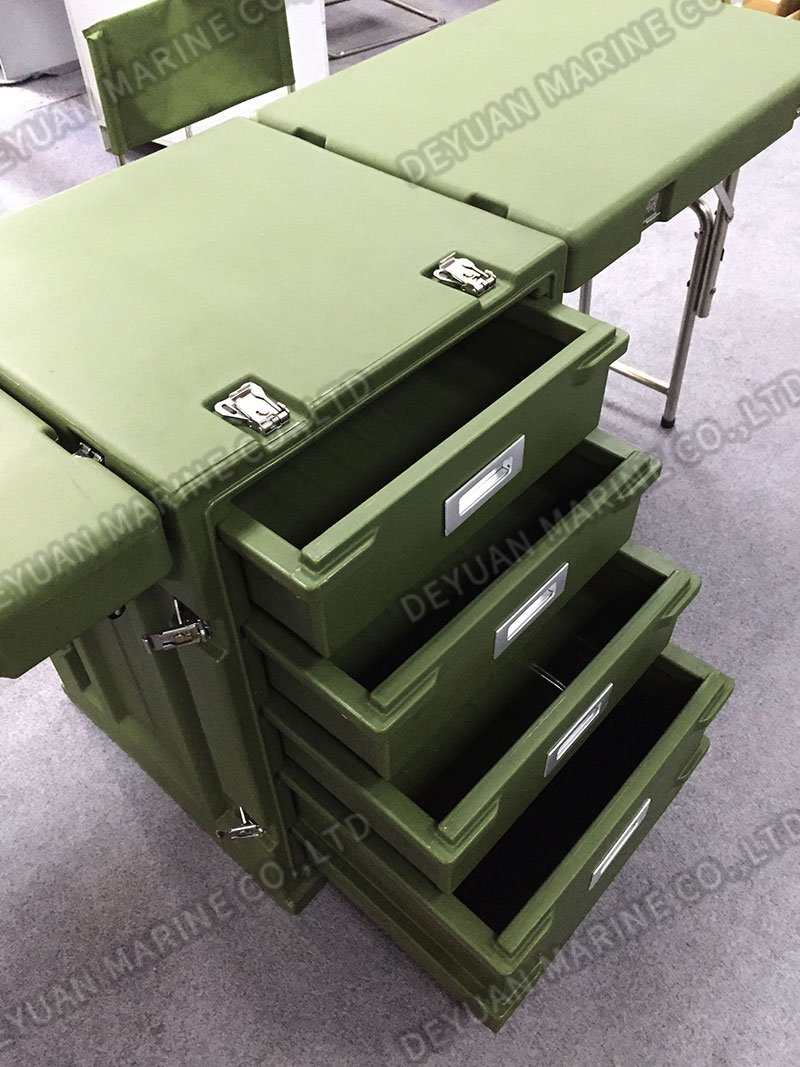

11. The internal size of the main body is 594*482*632mm, with a large space, 4 built-in drawers, the inner size of the thin drawer is 510*450*110mm, and the inner size of the thick drawer is 510*450*152mm.

12. At present, the existing colors are army green and black, and other colors can be customized according to customer needs.

13. Logo groove design, various labels can be pasted according to customer needs.

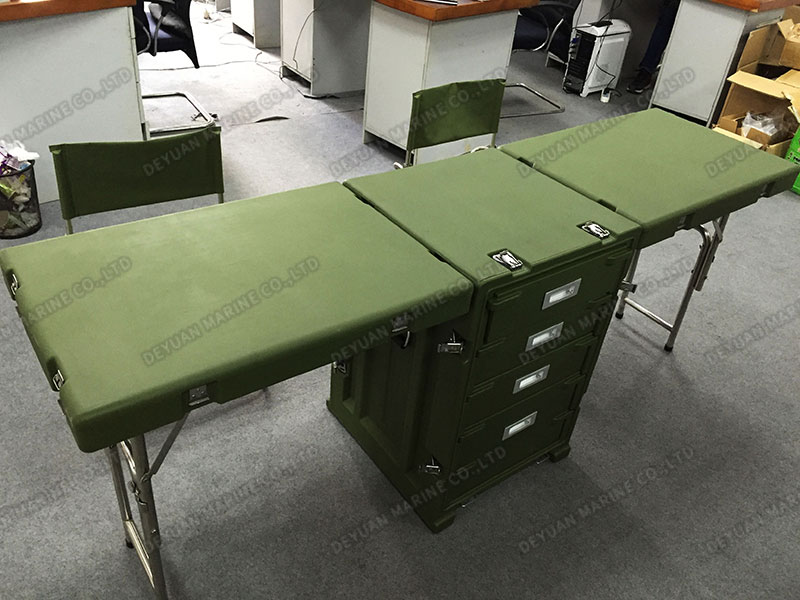

14. The two covers on the side each have a pair of table legs, which can be combined with the box to form a table. The unfolded size is 2100*600*750mm, the separate size of the desktop is 600*600mm, and the height is 750mm. Bench, the expanded size of the bench is 32*28*39cm, and the folded size of the bench is 45*32cm.

Performance Test

IP65 waterproof and dustproof level test

Drop test:

14KG items inside at a height of 640mm, free drop of corners and edges for 26 times.

Vibration test

ASTMB.DC-18 (American Society for Testing and Materials): 120 minutes Violent vibration of 5-50 Hz, 3 axes, 40 minutes per axis;

Rain test: rainfall 100mm per hour, 40 minutes of rain on 6 surfaces respectively (relevant test reports are provided for the above tests).
