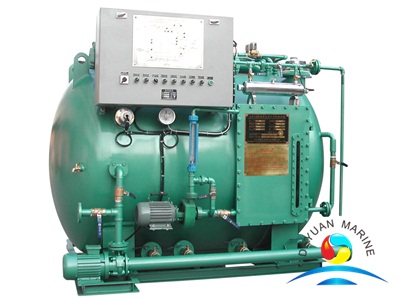

Marine Sewage Water Treatment Plants

The SWCM type marine sewage treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.
Quick details:

1. Sewage Water Treatment Plants capacity:10~250person

2. Standard: IMO MEPC159(55),MARPOL 73/78

3. Certificate : CCS,EC,BV,ABS,DNV,GL,RINA

4. Usage: ships &vessels
5.Main component:air pump,cutting and discharge pump,vacuum pump
Product Specifications :

Model		15	20	25	30	40	50	60	80	100	150	200	250
Load	Average load	1190	1540	1890	2310	3080	3780	4480	6020	7700	11200	14700	18200
	L/d
	Peak load	149	193	237	289	385	473	560	753	963	1400	1838	2275
	L/h
	Organic load	0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	5.6	7.35	9.1
	kgBOD5/d
Rated capacity(P)		15	20	25	30	40	50	60	80	100	150	200	250
Max capacity(P)		17	22	27	33	44	54	64	86	110	160	210	260
Electricity		AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ
Power(KW)		1.5	1.5	1.5	1.5	1.5	2	2	2.5	2.5	3
External dimensions LWH(mm)		1550 ×1400 ×1600	1650 ×1400 ×1600	1850 ×1500 ×1635	1950 ×1500 ×1635	1800 ×1700 ×1900	1900 ×1700 ×1950	2100 ×1700 ×2000	2500 ×1900 ×2150	2500 ×1900 ×2300	3150 ×2400 ×2300
Weight (Kg)	Dry weight	1150	1200	1250	1350	1500	1750	1950	2150	2900	3800
	Wet weight	2600	2933	3210	3928	4689	5665	6486	8100	10400	14680
Discharge standard		TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5
