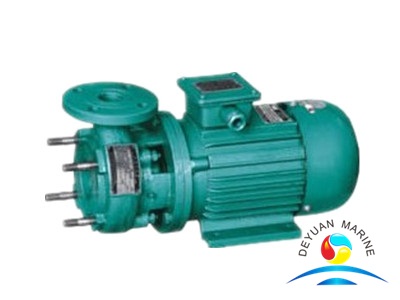

Cutting Pump For Marine Sewage Treatment Plant

CWF series marine cutting pump is the open impeller centrifugal discharge pump which is used to pulverize and transfer the soft foul in the anitary sewage under 85℃。The maximum diameter of solid particle after circular pulverizing is within 5mm.It is also applicable to pulverize the coagulate of heavy oil under low temperature in order to facilitate injection.
CWF series marine cutting pump is the open impeller centrifugal pump which adopted the new patent technology.There are knift-edges on the impeller and at the inlet of the pump,to pulverize the fouls in the sewage and at the back of the impeller.

Main Technical Performance paremeter
Type	Flowrale m3/h	Pressure	Pump weight	Intel Pipe Diameter	Outl Pipe Diameter
Type	Flowrale m3/h	MPa	KW	mm	mm
0.5CWF-8	5	0.08	0.75	50	32
0.5CWF-10	5	0.1	1.1	50	32
0.5CWF-15B	5	0.15	1.1	50	32
0.5CWF-20B	5	0.2	1.5	50	32
0.5CWF-25B	5	0.25	2.2	50	32
0.5CWF-30B	5	0.3	3	50	32
1CWF-11	10	0.11	1.5	65	32
1CWF-20B	10	0.2	3	65	50
1CWF-25B	10	0.25	4	65	50
1CWF-30B	10	0.3	5.5	65	50
1.5CWF-20B	15	0.2	3	65	50
1.5CWF-25B	15	0.25	4	65	50
2CWF-11B	20	0.11	2.2	65	40
2CWF-20B	20	0.2	4	65	40
2CWF-30B	20	0.3	7.5	65	50
3CWF-10	30	0.1	4	65
